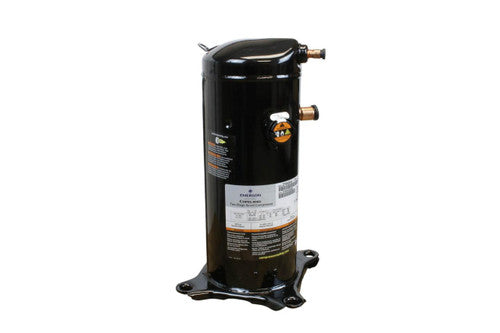

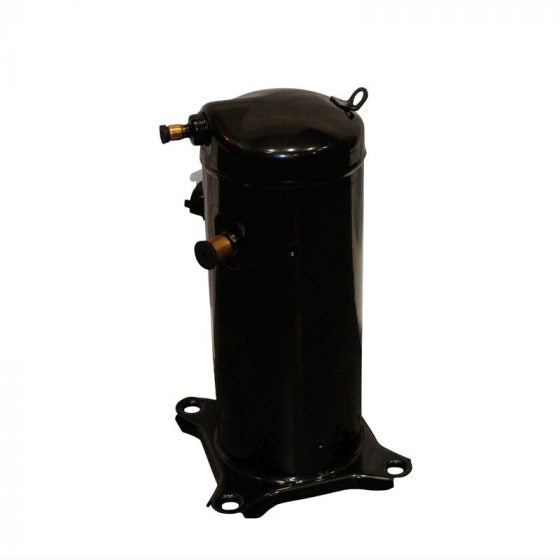

CARRIER ZP20K5E-TF5-830 Compressor

Product Description

The CARRIER ZP20K5E-TF5-830 is a compressor suitable for air conditioning systems. This Copeland scroll compressor has a BTU output of twenty thousand. It operates on R-410A refrigerant and is designed for single-phase power at two hundred eight to two hundred thirty volts. The unit features built-in protection.

• Scroll compressor type
• Compatible with R-410A refrigerant
• Ideal for air conditioning applications

Product Highlights

This compressor is effective for cooling systems, ensuring consistent performance in air conditioning setups.

Product Information

Standard Information

• Brand: Carrier
• MPN: ZP20K5E-TF5-830

Technical Specifications

• Application: A/C
• BTU Output: 20000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Country Of Origin: USA
• Cycle/Hertz: 60 Hz
• Phase: Single
• Refrigerant: R-410A
• Voltage: 208-230 VAC
• Motor Type: PSC
• Oil Type: Polyol Ester (POE)
• Length: 9.69 inches
• Width: 9.69 inches
• Height: 15.27 inches
• Weight: 47.4 lbs
• Discharge Connection: 1/2 inch
• Suction Line Size (OD): 3/4 inch
• Liquid Line Size (OD): 1/2 inch
• Rated Load Amps: 15
• Minimum Circuit Amps: 13.5
• Maximum Amps: 21
• Locked Rotor Amps: 58.3
• High Locked Rotor Amps: 58.3
• Maximum Fuse Size: 15
• Maximum Operating Current: 11.5
• Efficiency: 9.8
• Mounting Dimensions: 7.5 x 7.5 x 16.02 inches
• Base: 7.5 x 7.5 x 16.02 inches
• Oil Charge Initial: 25 oz.
• Oil Charge Recharge: 21 oz.
• Evaporating Temperature: 45°F, 50°F
• Return Gas Temperature: 65°F, 70°F
• Mass Flow: 336 lbs/hr; 295 lbs/hr
• Run Capacitor MFD: 35/370
• Suction Line Fitting: Sweat or Braze
• Protection: Internal Inherent Protection
• CSA Listing: Yes
• UL Listed: Yes
