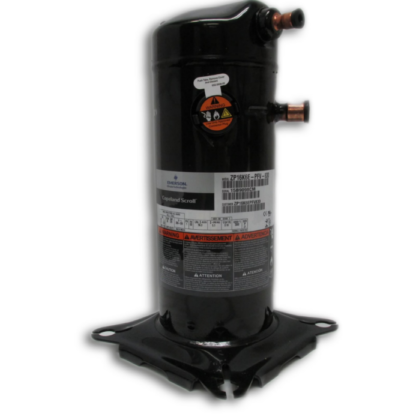

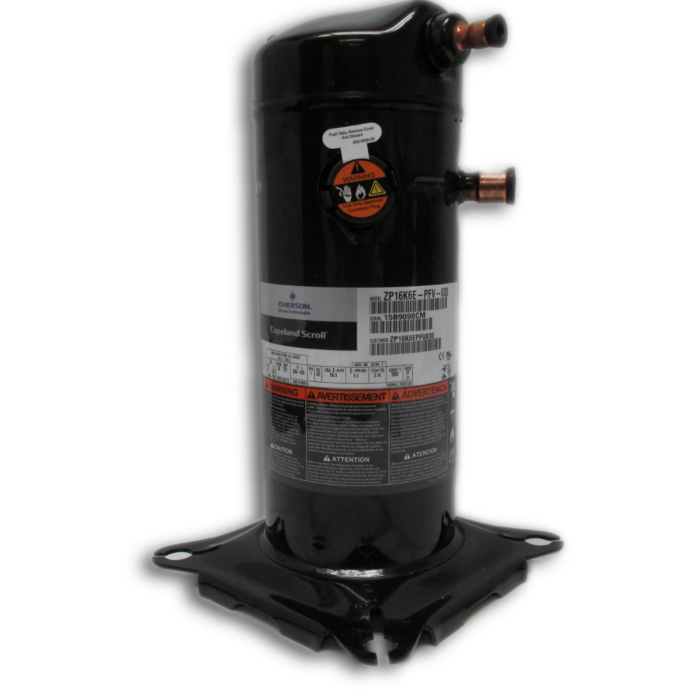

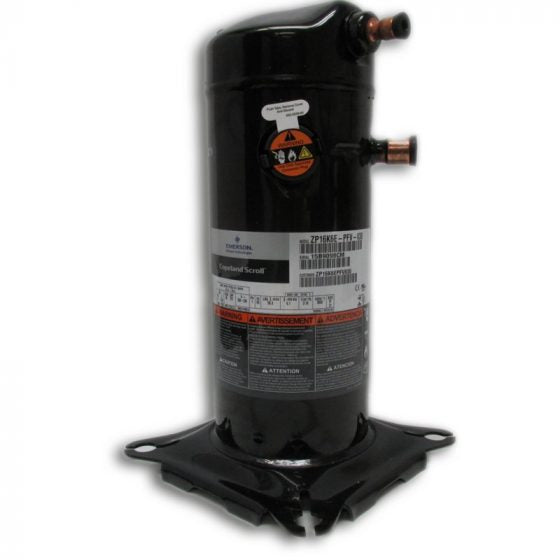

CARRIER ZP16K6E-PFV-830 Scroll Compressor for A/C Applications

Product Description

The CARRIER ZP16K6E-PFV-830 is a hermetic scroll compressor ideal for air conditioning systems. Operating at three thousand five hundred RPM, it is compatible with R-410A refrigerant. The compressor has a displacement of zero point nine one cubic inches per revolution, providing an air flow rate of one hundred ten point ninety-six cubic feet per hour.

• Designed for single-phase power supply at two hundred eight to two hundred thirty volts and sixty hertz.
• Includes a three-quarter inch suction line fitting and a one-half inch discharge connection.
• Constructed with internal protection that enhances reliability.

Product Highlights

This compressor is perfect for HVAC applications, providing a reliable and effective solution for cooling needs.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Type: Scroll

Technical Specifications

• Length: 9 inches
• Width: 9 inches
• Height: 15 inches
• Weight: 46.0825 pounds
• Amps: 4.4-6.8
• BTU Output: 15500
• Voltage: 208-230 VAC
• Refrigerant: R-410A
