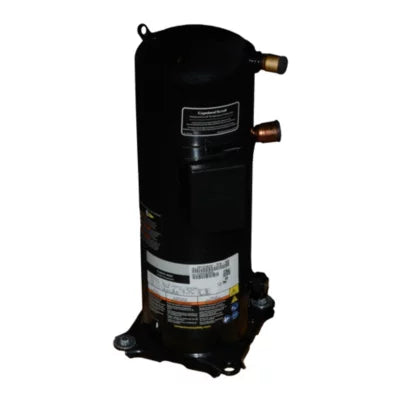

CARRIER ZP122KCE-TFD-950 Scroll Compressor

Product Description

The CARRIER ZP122KCE-TFD-950 is a hermetic scroll compressor designed for use with R-410A refrigerant. It operates at 380/420/460 VAC and 50/60 Hz, delivering a BTU output ranging from 110,500 to 124,000. This unit features a displacement of 6.85 cubic inches per revolution and comes with an initial oil charge of eighty-five ounces of Polyolester oil.

• Stub-type discharge connection with a seven-eighth inch outer diameter.
• Stub-type suction line fitting with a one and one-eighth inch outer diameter.
• Dimensions: eleven point seven inches in length, ten point thirty-three inches in width, and twenty-two inches in height.

Product Highlights

This compressor minimizes liquid refrigerant slugging impact and reduces maintenance needs due to fewer moving parts.

Product Information

Standard Information

• Brand: CARRIER
• UPC: See Optical

Technical Specifications

• Length: 11.7 inches
• Width: 10.33 inches
• Height: 22 inches
• Weight: 145.00 lbs
• Amps: 15.4-16.9
• BTU Output: 110,500-124,000
• Compressor Housing: Hermetic
• Compressor Type: Scroll
• Cubic Measurement: 3.8565
• Voltage: 380/420/460 VAC
• Refrigerant: R-410A
• Sound Level: 76-81 dBA
