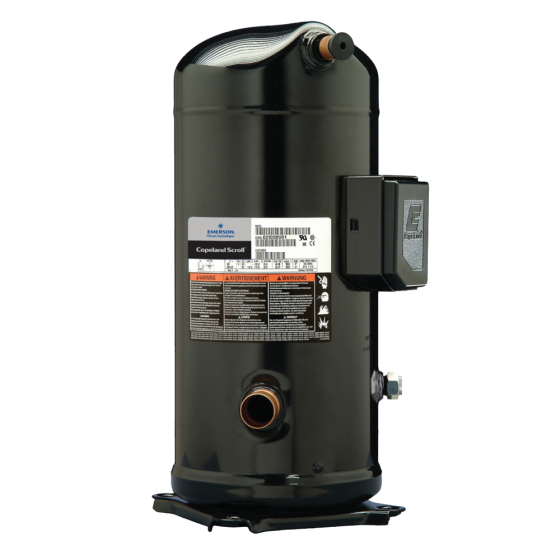

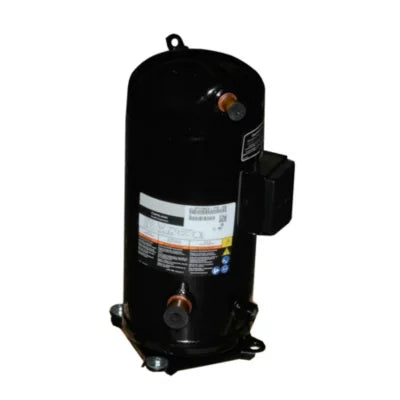

CARRIER ZP120KCE-TFD-950 Copeland Scroll Compressor 460VAC 3 PH 60Hz

Product Description

The CARRIER ZP120KCE-TFD-950 is a Copeland scroll compressor designed for R410A refrigerant. This model operates on three-phase power at 460 volts and sixty hertz, ideal for various HVAC applications. With a BTU output of 120,000, this compressor effectively supports cooling requirements.

• Utilizes R410A refrigerant for efficient cooling.
• Built with screw terminals for reliable electrical connections.
• Compact design with fewer moving parts enhances longevity and reduces maintenance.

Product Highlights

This compressor provides high efficiency and operational reliability, with features that cater to both residential and commercial systems.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: USA

Technical Specifications

• BTU Rating: 120000
• Compressor Type: Scroll
• Voltage: 460 VAC
• Phase: 3
• RLA: 20
• LRA: 125
• Oil Type: POE (Polyol Ester)
• Dimensions: 10.38 x 11.23 x 21 inches
• Weight: 135 lbs
• Sound Level: 79-84 dBA
• Suction Line Size: 1-3/8 inches
• Discharge Line Size: 7/8 inches
• Approvals: UL Recognized
