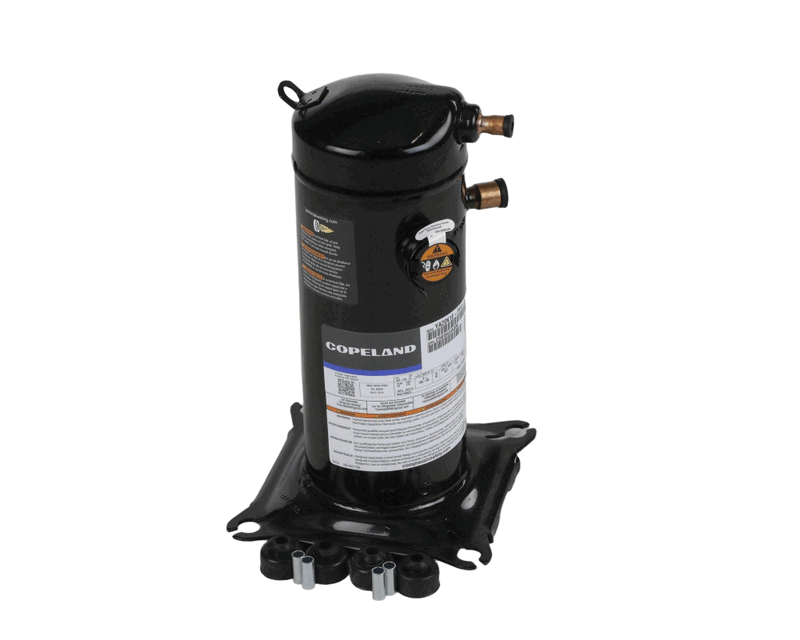

Carrier ya20k1e-pfv-8a1 Scroll Compressor 20000 Btu/h R454B

Product Description

The CARRIER ya20k1e-pfv-8a1 is a scroll compressor designed for residential and light-commercial air conditioning systems using R454B refrigerant. Scroll compressors use two interleaving spiral elements to compress refrigerant vapor, delivering efficient and quiet operation compared to reciprocating designs. This unit is rated at 20,000 BTU/h and operates on a single-phase, 208-230V, 60Hz electrical supply. It is a genuine OEM replacement part intended for installation by licensed HVAC technicians during compressor changeout or system service.

This compressor is suited for split-system air conditioning and heat pump applications where R454B refrigerant is specified. R454B is a low-global-warming-potential refrigerant commonly found in newer residential equipment as an A2L-classified alternative to R-410A. This unit targets systems requiring a 20,000 BTU/h cooling capacity at single-phase power. It measures 14.5 inches in length, 13.5 inches in width, and 20 inches in height, making footprint verification against the existing installation important before ordering.

Key Features

• Scroll compressor design for efficient, low-vibration refrigerant compression
• Rated at 20,000 BTU/h cooling capacity
• Compatible with R454B low-GWP refrigerant
• Single-phase 208-230V, 60Hz operation for standard residential electrical supply
• Genuine OEM replacement part ensuring fit and performance to original specifications
• Compact footprint: 14.5 x 13.5 x 20 inches

Compatibility

Designed as a genuine OEM-style replacement scroll compressor for CARRIER residential and light-commercial air conditioning or heat pump systems specifying R454B refrigerant at 20,000 BTU/h single-phase capacity. Confirm system refrigerant type, voltage, and compressor mounting configuration before installation.

Installation Notes

Compressor replacement must be performed by an EPA Section 608 certified HVAC technician. Recover all refrigerant from the system before opening any refrigerant circuit. R454B is an A2L mildly flammable refrigerant — follow all applicable safety procedures and local codes regarding handling, ventilation, and ignition sources. After installation, evacuate the system to the required deep vacuum level and recharge with R454B to the system manufacturer's specified charge weight before energizing the compressor.

Technical Specifications

• Compressor Type: Scroll
• Refrigerant: R454B
• Cooling Capacity: 20,000 BTU/h
• Voltage: 208-230V
• Frequency: 60Hz
• Phase: 1-Phase
• Length: 14.5 inches
• Width: 13.5 inches
• Height: 20 inches

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ya20k1e-pfv-8a1
