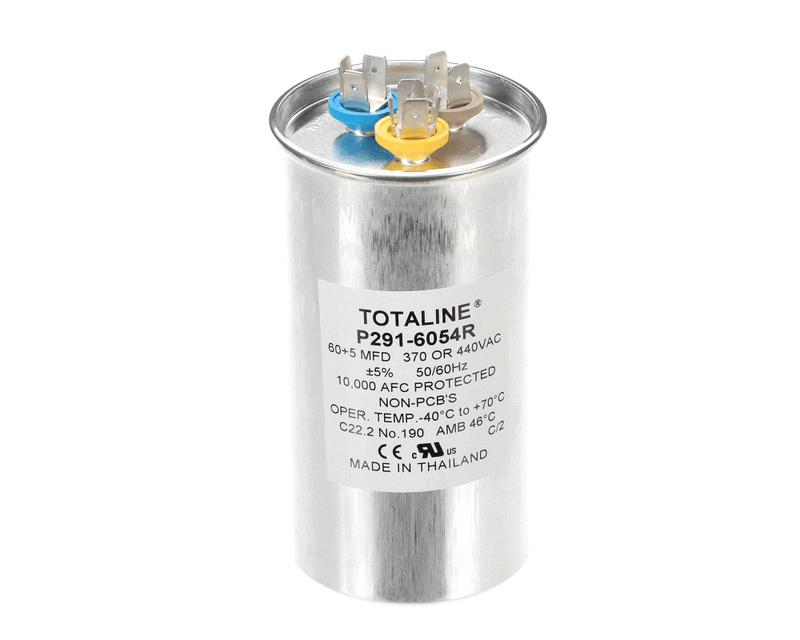

Carrier p291-6054r Dual Run Capacitor 60+5 Mfd 440V

Product Description

The CARRIER p291-6054r is a dual run capacitor rated at 60+5 microfarads (MFD) and 440 volts AC, designed as a genuine OEM replacement for Carrier heat pumps and air conditioning systems. Run capacitors keep compressor and fan motors operating at correct phase and efficiency throughout the run cycle. The dual configuration handles both the compressor and condenser fan motor from a single unit. This round aluminum capacitor features quick-connect terminals, a tolerance of plus or minus 6 percent, and a temperature rating of -40 to 70 degrees C, making it suitable for the thermal demands typical of residential HVAC installations.

The p291-6054r is used in Carrier heat pump and air conditioner applications requiring a dual 60+5 MFD, 440-volt round run capacitor. Confirmed compatible units include the 38YCD348 M 3A0, 38BRC048 370, and 38BRC048 360. Additional compatible model numbers may apply — consult the full fits-models list for your specific unit. This part is typically replaced during a no-start or hard-start diagnosis on the compressor or condenser fan motor circuit.

Key Features

• Dual run capacitor supports both compressor and condenser fan motor from one unit
• Rated 60+5 MFD with plus or minus 6 percent tolerance
• 440-volt AC rating with 50/60 Hz compatibility
• Quick-connect terminals for straightforward field replacement
• Round aluminum housing rated for -40 to 70 degrees C operating temperature
• Genuine OEM part for Carrier heat pump and air conditioner systems

Compatibility

Confirmed compatible with Carrier units 38YCD348 M 3A0, 38BRC048 370, and 38BRC048 360. Additional compatible models may apply — refer to the complete fits-models list provided with this part.

Installation Notes

Capacitor replacement is performed by licensed HVAC technicians. Disconnect and lock out power to the unit before beginning any service work. Capacitors store a charge even after power is removed — always discharge the capacitor safely using an insulated resistor before handling terminals. Verify MFD rating and voltage rating match the original part exactly before installation.

Technical Specifications

• Capacitance: 60+5 MFD
• Voltage: 440 volts AC
• Frequency: 50/60 Hz
• Tolerance: plus or minus 6 percent
• Temperature Rating: -40 to 70 degrees C
• Type: Dual Run
• Shape: Round
• Terminal Type: Quick Connect
• Material: Aluminum
• Length: 6.6 inches
• Width: 3 inches
• Height: 2.9 inches
• Weight: 2 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: p291-6054r
