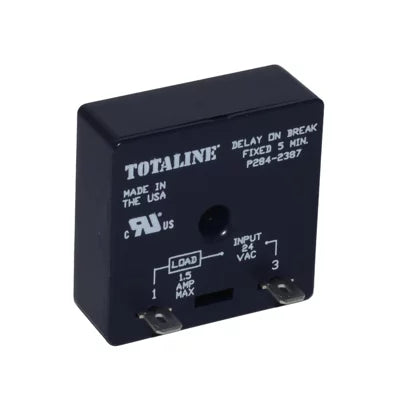

CARRIER P284-2387 Anti-Short Cycle Timer

Product Description

The CARRIER P284-2387 is a timer that prevents compressor damage caused by rapid short cycling. It features a fixed time delay of five minutes and operates on a voltage range of eighteen to thirty VAC. This unit is equipped with a solid-state relay and is rated for a power capacity of 1.5 Amps. The product dimensions are two point nine inches in length, six point one inches in width, and one point two inches in height, packaged in a compact two by two size. The installation process is straightforward with a simple two-wire connection, making it suitable for fifty and sixty Hertz cycles.

• Features a power rating of 1.5 Amps.
• Prevents damage from rapid short cycling.
• Easy installation with a two-wire hookup.

Product Highlights

The CARRIER P284-2387 is a reliable choice for protecting compressors in HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• Control Voltage: 24 VAC

Technical Specifications

• On-Break Timer: None
• 2x2: None
• Cycle/Hertz: 50/60 Hz
• Relay Type: Solid State
• Time Delay: Fixed 5 min.
• Voltage: 18/30 VAC
• Country of Origin: USA
• Cubic Measurement: 0.0123
