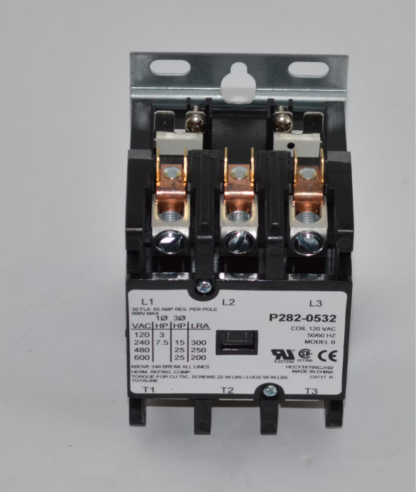

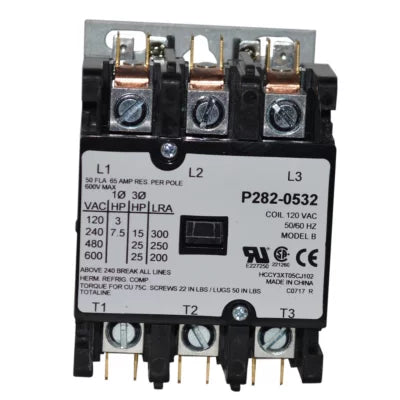

CARRIER P282-0532 - 3-Pole 50A Contactor

Product Description

The CARRIER P282-0532 is a three-pole contactor ideal for electrical switching applications. This contactor supports switching voltages reaching up to 600 VAC and operates with a control voltage of 120 VAC at 60 Hz. It is rated for 50 Amps and accommodates lug terminal connections. Manufactured in the USA, it is CSA Listed, confirming compliance with Canadian safety standards. The dimensions of this contactor are approximately two point nine by four by three point three inches, weighing one point fifteen pounds. This unit is suited for single-phase systems.

• Rated for 50A switching current.
• Operates with a 120VAC coil voltage.
• Features three poles for switching three separate circuits.

Product Highlights

The CARRIER P282-0532 functions effectively in various electrical systems, providing reliable operation and safety compliance.

Product Information

Standard Information

• Brand: CARRIER
• Country of Origin: USA

Technical Specifications

• Weight: 1.15 lbs
• Dimensions: 2.9 x 4 x 3.3 inches
• Amps: 50
• Coil Voltage: 120 VAC
• Switching Voltage: 600 VAC
• Poles: Three
• Cycle/Hertz: 60 Hz
• Terminal Connection Type: Lugs
