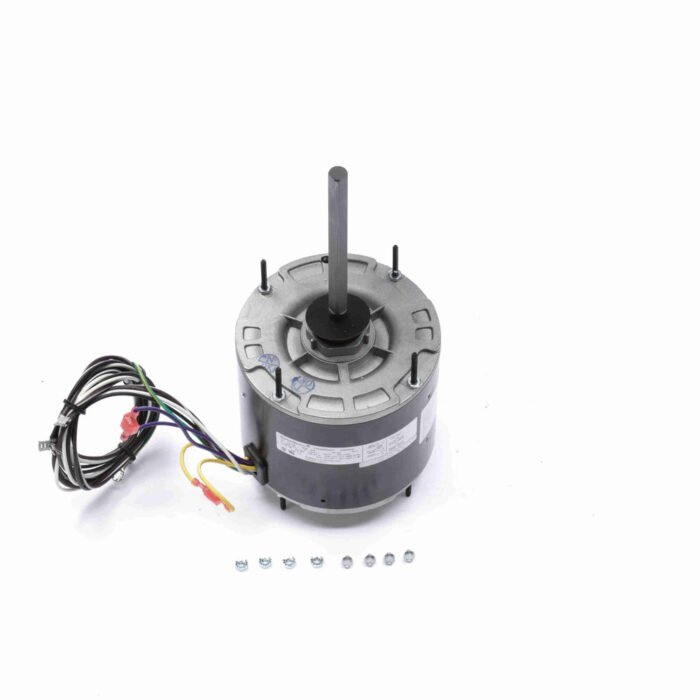

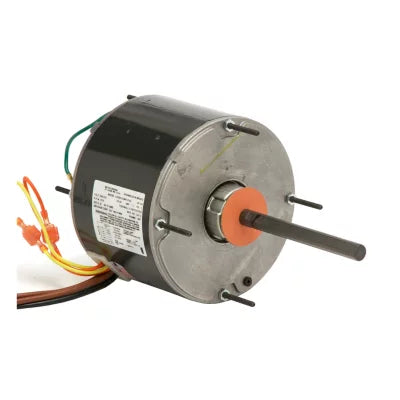

CARRIER P257-3205 Condenser Fan Motor 1/3 HP

Product Description

The CARRIER P257-3205 is a durable single-phase condenser fan motor designed for HVAC systems. This motor operates at 208-230 VAC and 60 Hz, providing a power output of 1/3 HP at a speed of 825 RPM. The motor features a Totally Enclosed Air Over (TEAO) design, which protects it from external elements.

• Features a TEAO design for better protection.
• Operates efficiently at 208-230 VAC with a horsepower of 1/3.
• Includes an automatic reset thermal overload protector for enhanced safety.

Product Highlights

The CARRIER P257-3205 is ideal for continuous operation, making it suitable for various HVAC applications. It offers reversible rotation and can be mounted using base, stud, or strap for flexibility in installation.

Product Information

Standard Information

• Brand: CARRIER
• Condition: New

Technical Specifications

• Horsepower: 1/3
• Phase: Single Phase
• RPM: 825
• Voltage: 208-230 VAC
• Weight: 15 lbs
• Dimensions: Length 15.5 in, Width 7.5 in, Height 7.5 in
• NEMA Frame: 48
• Insulation Class: F
• Mounting: Base, Stud, Strap
• Ambient Operating Temperature: 70°F
