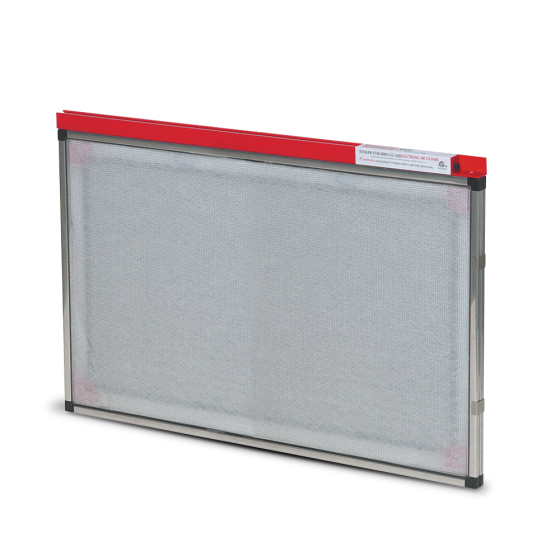

Carrier P101-1625C Electronic Air Cleaner

Product Description

The Carrier P101-1625C electronic air cleaner is made for installation in the duct system, replacing a standard one-inch filter in a furnace or air handler. This unit runs on a twenty-four VAC power supply and effectively removes airborne particles like pollens, allergens, bacteria, dust mites, smoke, and chemicals.

• Replaces standard one-inch filter.
• Operates with a twenty-four VAC power supply.
• Captures particles as small as 0.01 microns.

Product Highlights

This electronic air cleaner improves indoor air quality by filtering out harmful particles efficiently.

Product Information

Standard Information

• Brand: Carrier
• MPN: P101-1625C

Technical Specifications

• Voltage: 24
• Voltage Range: 18V min. to 30V max.
• Power Consumption: Max 2.5 watts
• Current Draw: Max 0.1A
• Filter Size: 16 inches x 25 inches
• Dimensions: 15.625 inches x 24.625 inches
• Weight: 35.00 lbs
• Efficiency: Down to 1 micron
• Pressure Drop: 0.18 in W.G.
• MERV: 10 @ 295 fpm
• Safety Standards: California Prop 65
