CARRIER P045-25071K Compressor and Tubing Kit

Product Description

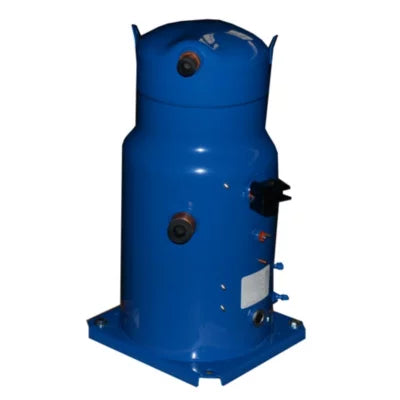

The CARRIER P045-25071K Compressor and Tubing Kit includes a hermetic scroll compressor designed to work with R-410A refrigerant. This unit operates on 460 VAC, 60 Hz, and is suitable for three-phase power systems. It can deliver a BTU output of 250,796, making it effective for various HVAC applications.

• Utilizes a hermetic scroll compressor for refrigerant compression.
• Designed for systems requiring 460 VAC, 60 Hz, three-phase power.
• Compatible with R-410A refrigerant in cooling applications.

Product Highlights

This compressor features a displacement of thirty-nine point six cubic meters per hour and provides a sound level between eighty-two and eighty-six dBA. The initial oil charge is two hundred twenty-six point fifty-five ounces of polyolester (POE) oil.

Product Information

Standard Information

• Brand: CARRIER
• Compressor Housing: Hermetic

Technical Specifications

• Length: twenty-five point six inches
• Width: twenty-seven inches
• Height: forty-seven inches
• Weight: three hundred eleven pounds
• BTU Output: two hundred fifty thousand seven hundred ninety-six
• Locked Rotor Amps (LRA): two hundred fifteen
• Rated Load Amps (RLA): thirty-six point four
• Discharge Connection Size OD: one and one-eighth inches
• Suction Line Size (OD): one and five-eighths inches
• Sound Level (dBA): eighty-two to eighty-six
• Refrigerant: R-410A
• Voltage: four hundred sixty VAC
• GTIN: 00822529413709
• UPC: 822529413709
