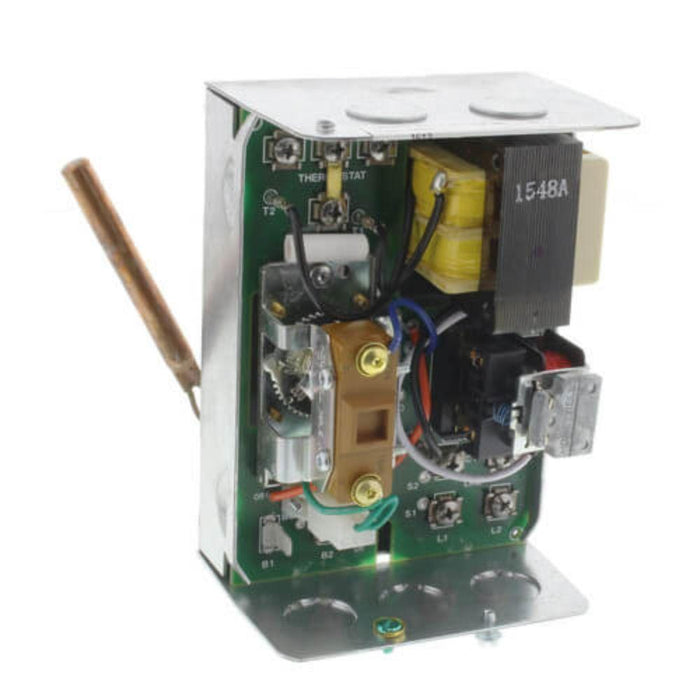

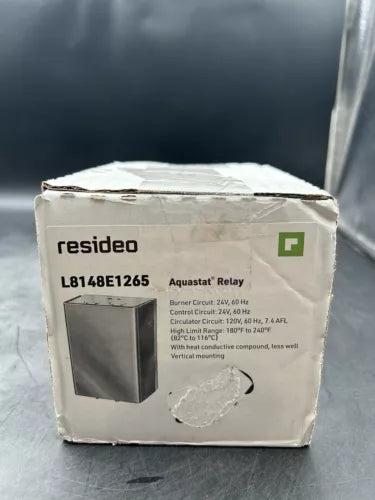

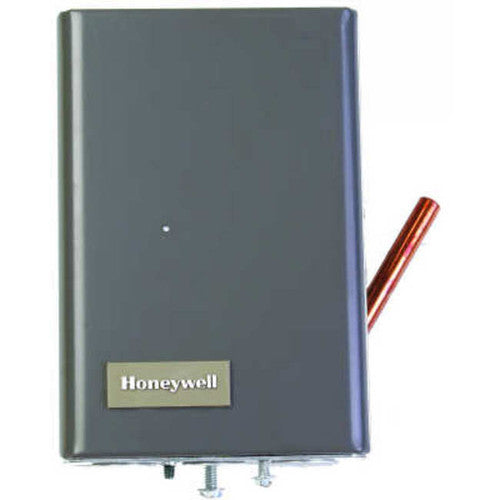

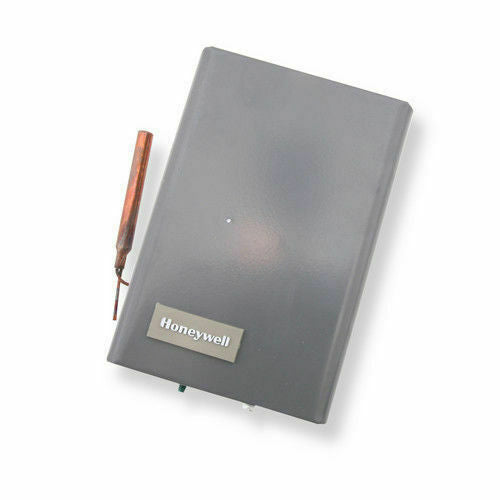

CARRIER L8148E1265 Aquastat Relay

Product Description

The CARRIER L8148E1265 is an aquastat relay designed for immersion-type control. This device provides critical high limit protection for burner circuits while allowing switching control of burner and circulator motors. The relay includes a Molex plug for vent damper connections and is suitable for vertical mounting.

• High limit protection for burner circuits
• Switching relay control for burner and circulator motors
• Molex plug for vent damper connection

Product Highlights

This aquastat relay is a vital component for regulating temperature in heating systems, ensuring safety and efficiency in operation.

Product Information

Standard Information

• Brand: CARRIER
• MPN: L8148E1265

Technical Specifications

• Operating Temperature Range: 180°F to 240°F (82.22°C to 115.55°C)
• Differential Temperature: 15°F Fixed
• Mounting Type: Vertical Mount
• Voltage: 120 V
• Electrical Rating: Circulator - Full Load 7.4 A @ 120 VAC, 3.7 A @ 240 VAC; Locked Rotor 44.4 A @ 120 VAC, 22.2 A @ 240 VAC, Burner - Full Load 7.4 A @ 120 VAC, 3.7 A @ 240 VAC; Locked Rotor 44.4 A @ 120 VAC, 22.2 A @ 240 VAC, Low Voltage 0.8 A max @ 24 VAC, Millivoltage 0.25 A @ 1/4 to 12 VDC
• Dimensions: Length 4.31 inches, Width 3.13 inches, Height 6.13 inches
• Weight: 4 pounds
• Approvals: UL Listed
• Color: Gray
• Standard Scale Range: 180°F to 240°F (82°C to 116°C)
• Maximum Ambient Temperature: 150°F (66°C) with 1.2A 24V load, 77°F (25°C) with 1.4A 24V load
• Thermostat Required: 24V
• Thermostat Heat Anticipator Setting: 0.2A
