Carrier ksaif0701aaa Wi-fi Interface Kit Ductless Systems

Product Description

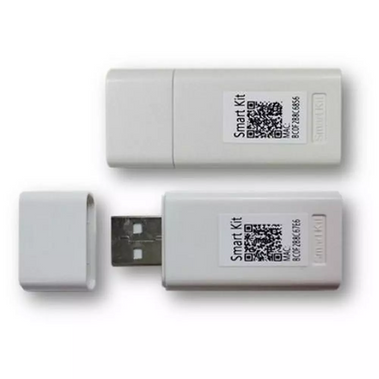

The CARRIER ksaif0701aaa is a plug-in Wi-Fi interface kit designed for R-454B ductless mini-split systems, including Highwall, Cassette, and Console indoor unit configurations. The adapter connects directly to the indoor unit control board, linking the system to a local Wi-Fi network and enabling remote control through the Carrier CliMate mobile app. Core controllable functions include power on/off, operating mode selection, temperature adjustment, fan speed control, and scheduling. Licensed HVAC technicians and qualified installers typically handle the integration during commissioning or as an add-on service call.

This interface kit is suited for residential and light commercial ductless installations where remote access, energy management, and user scheduling convenience are priorities. Typical applications include single-zone and multi-zone ductless systems installed in homes, apartments, offices, and small commercial spaces. The kit supports Highwall, Cassette, and Console indoor unit types within the R-454B product family. Feature availability may vary depending on the specific indoor unit model connected.

Key Features

• Plug-in installation connects directly to the indoor unit control board — no additional wiring harness required
• Enables remote control via the Carrier CliMate app over a local Wi-Fi network
• Supports power control, mode selection, temperature adjustment, fan speed, and scheduling functions
• Compatible with R-454B refrigerant-based Highwall, Cassette, and Console indoor units
• Suitable for residential and light commercial remote access and energy management applications

Compatibility

Designed for use with Carrier R-454B ductless indoor units in Highwall, Cassette, and Console configurations. Feature availability may vary by indoor unit model. Refer to the indoor unit installation manual or Carrier product documentation to confirm compatibility before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with ductless mini-split systems. Power down the indoor unit at the disconnect and confirm the system is de-energized before accessing the control board or installing the adapter. Follow the indoor unit service manual for the correct control board port location. After installation, complete Wi-Fi network pairing through the Carrier CliMate app per the kit setup instructions before returning the system to service.

Technical Specifications

• Refrigerant Compatibility: R-454B
• Compatible Unit Types: Highwall, Cassette, Console
• Control Method: Wi-Fi via Carrier CliMate app
• Application: Residential and light commercial ductless systems

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: ksaif0701aaa
