CARRIER KFAIF0101HWC-CL Hydronic Relay Interface Kit

Product Description

The Carrier KFAIF0101HWC-CL Hydronic Relay Interface Kit is designed for use with FE4 and FE5 fan coils. This kit allows for communication between the fan coils and hydronic heat systems without the need for 24VAC signals. It is essential for components that cannot connect through the system bus.

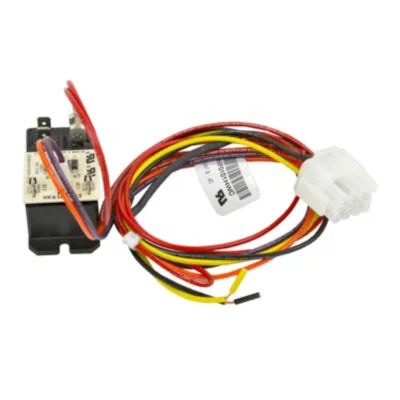

• Includes a relay fitted with a rectifier circuit board.
• Wiring harness is pre-wired for easy installation.
• Compatible with User Interface -B version and compatible fan coils.

Product Highlights

This interface kit ensures efficient operation between fan coils and hydronic heating systems. It simplifies wiring connections while providing the necessary control.

Product Information

Standard Information

• Brand: Carrier
• Country of Origin: USA

Technical Specifications

• Dimensions: 5 inches (L) x 5 inches (W) x 3 inches (H)
• Weight: 1 pound
• Relay Type: Fan
• Maximum Relay Ratings: 30 A @ 120/277VAC resistive
• Minimum Load Rating: 500 mA at 12VAC/VDC
• Additional Load Requirement: May be required
