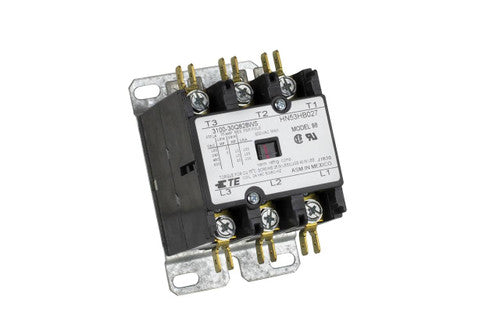

CARRIER HN53HB027 Definite Purpose Contactor

Product Description

The CARRIER HN53HB027 is a definite purpose contactor ideal for electrical switching applications. This device features a three-pole, single-throw switch that operates with a normally open circuit configuration. It works efficiently in both single-phase and three-phase systems and has 1/4 inch quick connect terminals for quick and easy coil connections.

• Three-pole, single-throw switch.
• Compatible with single-phase and three-phase systems.
• 1/4 inch quick connect for coil terminal connections.

Product Highlights

This contactor is suitable for various applications, providing reliable switching for HVAC and other systems.

Product Information

Standard Information

• Manufacturer: TE Connectivity
• Model #: 3100-30Q828WS

Technical Specifications

• Type: Definite Purpose
• Number of Poles: 3
• Switch Type: Three-Pole Single-Throw
• Circuit: Normally Open
• Maximum Voltage: 600
• Coil Terminal Connections: 1/4 inch Quick Connect
• Coil Voltage: 24 VAC
• Frequency: 50/60 Hz
• Line Voltage: 120 (Single Phase)
• Maximum Horsepower: 5.0
• Full Load Amperage: 25
• Resistance: 35 Ohms
• Voltage: 600 (3-Phase)
• Locked Rotor Amperage: 100
• Horsepower: 20.0
