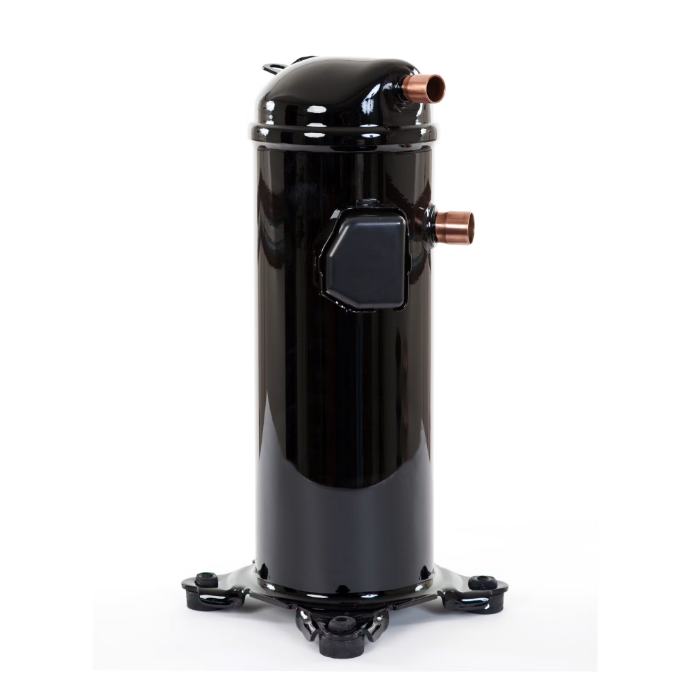

Carrier HLP081T2LC8 Compressor

Product Description

The Carrier HLP081T2LC8 is a compressor used in Carrier, Bryant, and Payne models. This compressor is a hermetic scroll type designed for efficiency and reliability. It utilizes R407-C refrigerant and requires PVE oil for optimal performance. It operates on a voltage of 208/230 and supports frequencies of 50 and 60 Hertz.

• Refrigerant Type: R407-C
• Voltage: 208/230
• Compressor Technology: Scroll

Product Highlights

This unit includes suction and discharge ports for easy connection to refrigerant lines, making installation straightforward.

Product Information

Standard Information

• Brand: Carrier
• Model Number: HLP081T2LC8

Technical Specifications

• Type: Hermetic
• Refrigerant: R407-C
• Frequency: 50/60 Hertz
• Voltage: 208/230
• Suction Diameter: 7/8 inches
• Discharge Diameter: 1/2 inches
• Oil Type: PVE
• Oil Recharge Volume: 3.32 pints
• Weight: 95.9 pounds
• Shipping Weight: 87 pounds
• Dimensions: 10.5 x 10.75 x 19 inches
• Capacity: 41300 BTU
• Length: 9.41 inches
• Width: 10.75 inches
• Height: 19 inches
• LRA: Cambridgeport Air Systems (Amps)
• Max RLA: 16 Amps
• MCC: 0.25 Amps
