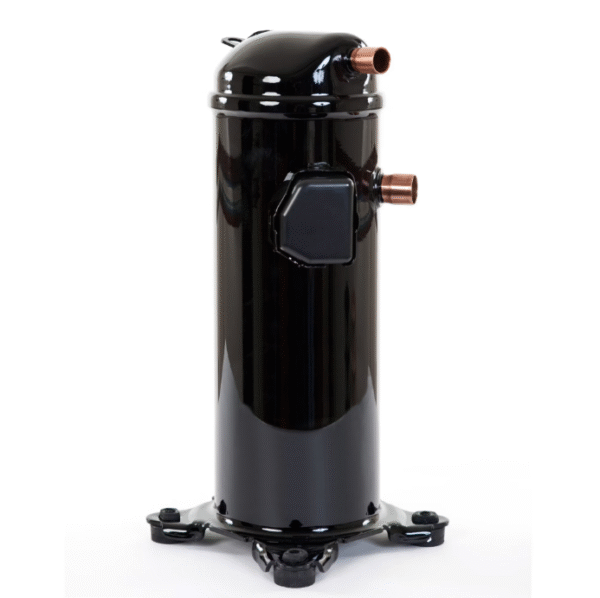

Carrier HLP075T4LC6 Compressor Scroll 460V 3Ph 60 Hz

Product Description

CARRIER HLP075T4LC6 is a genuine OEM replacement compressor scroll designed for HVAC systems. This Danfoss scroll compressor operates on 460V, 3-phase, 60 Hz power, utilizing R-407C refrigerant. It features a hermetic compressor housing and is suitable for various HVAC applications. With a BTU output of 74,330, it provides efficient cooling performance. The unit has a rated load amps (RLA) of 10.3 and a locked rotor amps (LRA) of 100, ensuring reliable operation.

• Genuine OEM replacement part for Carrier HVAC systems.
• Operates on 460V, 3-phase, 60 Hz power with R-407C refrigerant.
• Features a hermetic scroll compressor design with a 74,330 BTU output.

Product Highlights

This CARRIER HLP075T4LC6 compressor scroll is a genuine OEM component, ensuring compatibility and performance for HVAC applications requiring a 460V, 3-phase, 60 Hz scroll compressor.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: HLP075T4LC6
• Country of Origin: USA

Technical Specifications

• Manufacturer: Carrier HVAC
• Manufacturer Part Number: HLP075T4LC6
• Parts Town Number: CRRHLP075T4LC6
• Units: Each
• BTU Output: 74,330
• Compressor Brand: Danfoss
• Compressor Housing Type: Hermetic
• Compressor Type: Scroll
• Condensing Temperature: 130°F (54.44°C)
• Country of Origin: USA
• Frequency: 50/60 Hz
• Discharge Connection Size OD: 1/2 inch
• Discharge Connection Type: Sweat or Braze
• Displacement: 631 (ft3/Hr), 762 (ft3/Hr)
• EAN: 5702428223966
• Evaporating Temperature: 45°F (7.22°C)
• Locked Rotor Amps (LRA): 100
• Mounting Dimensions: 7.509 inch x 7.509 inch
• Oil Charge Initial: 53 oz.
• Oil Type: Polyvinyl Ether (PVE)
• Phase: Three
• Prop 65 Warning: Yes
• Rated Load Amps (RLA): 10.3
• Refrigerant: R-407C
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size OD: 7/8 inch
• Input Voltage: 380-415/460 VAC
