CARRIER HH18HB032 Temperature Actuated Switch

Product Description

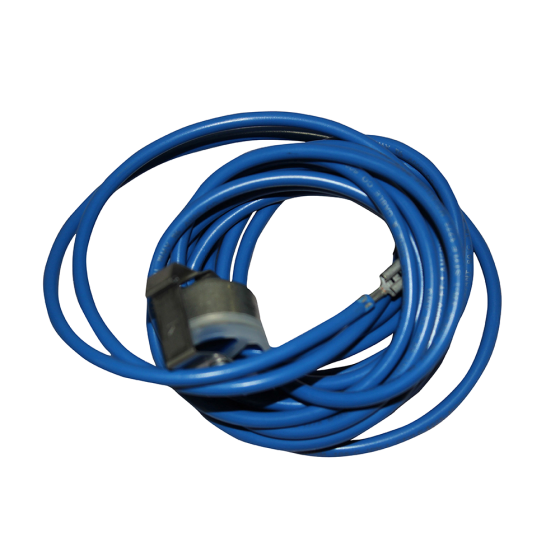

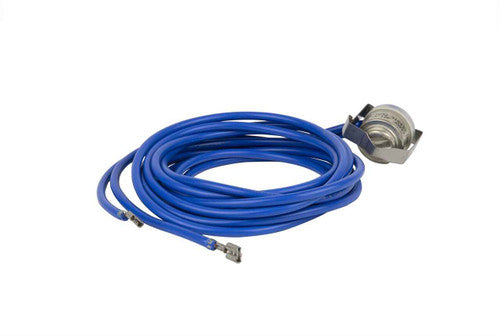

The Carrier HH18HB032 is a temperature-actuated switch that operates in HVAC systems. This single-pole, single-throw (SPST) switch activates at designated temperatures to help in maintaining system efficiency. It serves as a direct replacement part that fits within existing setups, designed specifically for a three-eighths inch diameter tube.

• This switch opens at thirty-three degrees Fahrenheit.
• It closes at forty-five degrees Fahrenheit.
• Includes a lead length of sixty-six inches.

Product Highlights

Product Information

Standard Information

• Switch Type: Single-Pole, Single-Throw (SPST)
• For Use On: 3/8 inch Diameter Tube

Technical Specifications

• Normally Closed: Opens at thirty-three degrees Fahrenheit
• Closes at: forty-five degrees Fahrenheit
• Lead Length: sixty-six inches
• Safety Standards: California Prop 65
• Operating Weight: 1 lbs
• Exterior Dimensions (D): six inches
• Exterior Dimensions (W): one inch
• Exterior Dimensions (H): eleven inches
