CARRIER HF26BB029 Actuator Motor 115V (Power Consumption 50W)

Product Description

The CARRIER HF26BB029 is an actuator motor suitable for industrial uses. This motor operates on a voltage of one hundred fifteen volts, alternating current, at a frequency of fifty or sixty hertz. It efficiently consumes fifty watts of power. The full stroke is twenty-point-five milliamps and it can handle ambient temperatures up to one hundred thirty-six degrees Fahrenheit, or fifty-eight degrees Celsius.

• Functions as an actuator motor.
• Operates at one hundred fifteen volts and fifty or sixty hertz.
• Maximum ambient temperature of one hundred thirty-six degrees Fahrenheit.

Product Highlights

This actuator motor is designed for reliable performance in various industrial applications.

Product Information

Standard Information

• Brand: CARRIER
• MPN: HF26BB029

Technical Specifications

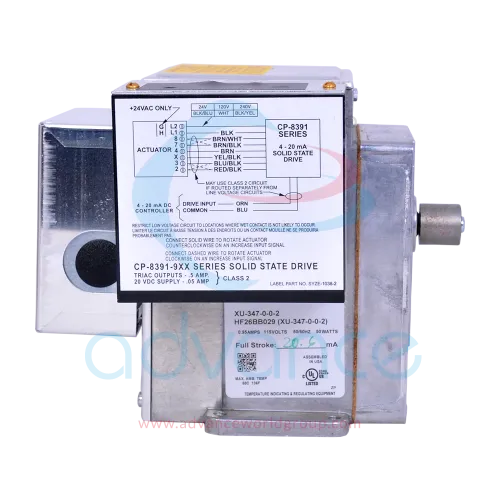

• Model Number: XU-347-0-0-1
• Shaft Size: seven-eighths inches
• Amperage: zero point ninety-five amperes
• Voltage: one hundred fifteen volts
• Frequency: fifty/sixty hertz
• Power Consumption: fifty watts
• Full Stroke: twenty-point-five milliamps
• Maximum Ambient Temperature: fifty-eight degrees Celsius
• Category: Actuator
• Reference Number: HF26BB029, ACV-3001-6
