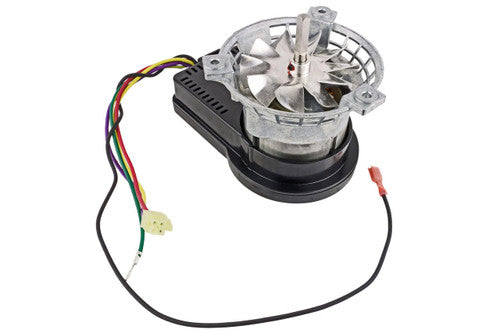

CARRIER HC14CR230 Draft Inducer Motor with Cooling Wheel

Product Description

The CARRIER HC14CR230 Draft Inducer Motor with Cooling Wheel operates on 208/230 volts and is suitable for HVAC systems. Built by Fasco, this motor offers reliable performance with a power output of 1/25 horsepower at a speed of 3775/2850 RPM. This model features a flange mount for easy installation and sealed ball bearings for durability.

• Single-phase motor at 208/230 volts
• Delivers 1/25 horsepower without a capacitor
• Clockwise rotation with flange mounting

Product Highlights

This draft inducer motor is designed for optimal performance in HVAC applications, ensuring efficient airflow.

Product Information

Standard Information

• Manufacturer: Fasco
• Manufacturer Part Number: 71720004

Technical Specifications

• Horsepower: 1/25
• Voltage: 208/230
• Hertz: 50/60
• Number of Phases: 1
• Amps: 0.27
• RPM: 3775/2850
• Rotation: Clockwise Lead End
• Mounting: Flange
• Capacitor: Not Required
• Bearing: Sealed Ball
• Insulation Class: B
• Shaft Diameter: 1/4
• Shaft Length: 1-1/8
• Length: 6
• Width: 3 1/2
