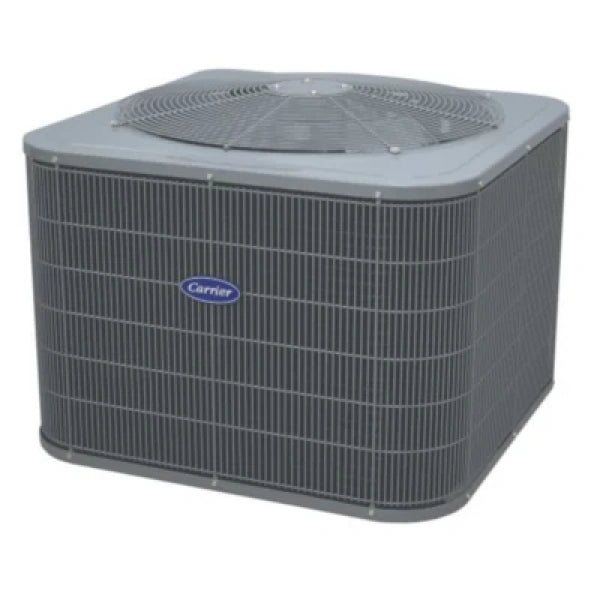

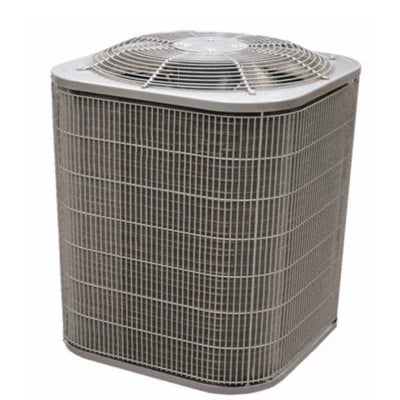

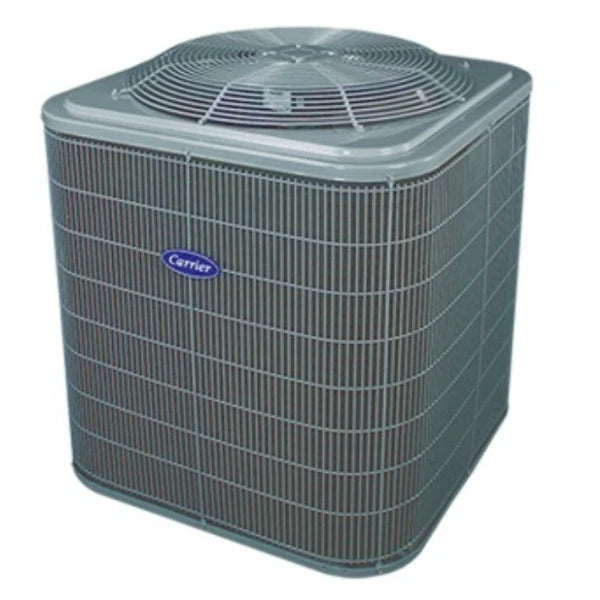

Carrier GA5SAN54800W Air Conditioner 4.0T

Product Description

The CARRIER GA5SAN54800W air conditioner is designed with non-ozone depleting, low global warming potential Puron Advance™ R-454B refrigerant. This single-stage air conditioner provides up to 17.0 SEER2 / 14.5 EER2. It features a single-stage scroll compressor and durable sheet metal construction. Sound levels reach as low as 71 dBa.

• Up to 17.0 SEER2 / 14.5 EER2
• Non-ozone depleting Puron Advance™ R-454B refrigerant
• Sound level as low as 71 dBa

Product Highlights

This air conditioner offers efficient cooling with eco-friendly refrigerant and durable construction, ensuring reliable performance for residential HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: GA5SAN54800W
• Country of Origin: MEX

Technical Specifications

• MfgNum: GA5SAN54800W
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Air Conditioners
• SubSubCat: Residential
• Approvals: UL Listed
• Brand: Carrier
• CFM: 3,050
• Compressor Type: Scroll
• Condenser Coil Fins per Inch (FPI): 20
• Condenser Fan Blade Diameter: 24
• Condenser Fan CFM: 3100
• Condenser Fan Discharge: Vertical
• Condenser Fan Motor Qty: 1
• Condenser Motor HP: 1/5
• Condenser Motor RPM: 1,100
• Condenser Motor Speeds: 1
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 4 Ton
• Cooling Rated Capacity (Btu/h): 48000
• Country of Origin: MEX
• Cycle/Hertz: 60 Hz
• EER2: 11.2
• Energy Star Rated: YES
• Full Load Amps: 1.05
• Inverter: NO
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Locked Rotor Amps (LRA): 126
• Maximum Overcurrent Protection (MOCP): 50
• Maximum Piping Length: 250'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: 1PGA5SAN54800W
• Phase: Single
• Product Family: GA5SAN5
• Prop 65: YES
• Rated Load Amps (RLA): 22.4
• Refrigerant: R-454B
• SEER2: 13.8-15.5
• Sound Level (dBA): 75
• Stages Cooling: 1
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8"
• Tier: Standard
• Tonnage: 4
• Voltage: 208-230 VAC
• Model: GA5SAN54800W
• Nominal Capacity: 4 Ton
