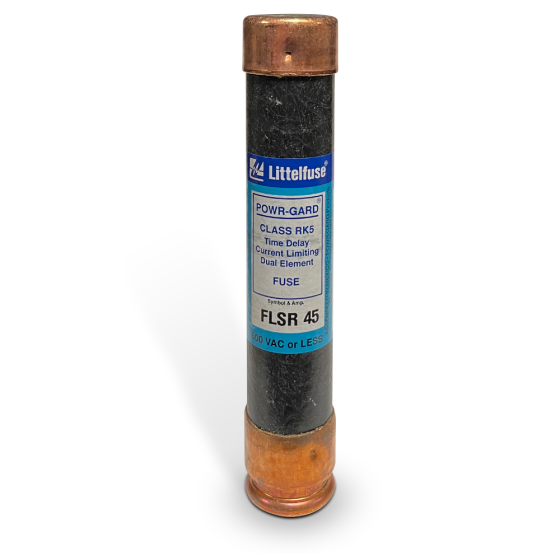

Carrier FLSR45 Fuse 45A

Product Description

The CARRIER FLSR45 fuse sets the standard for general purpose fuses. Its dual-element design provides short circuit and overload protection. Ideal for service entrance switches, transformers, switchboard mains and feeders, motor control central mains, and motor branch circuits, and all general purpose circuits.

• Dual-element design
• Current limiting
• Voltage Ratings AC: 600V - DC: 300V

Product Highlights

The CARRIER FLSR45 fuse offers reliable protection for various electrical applications with its current limiting, dual-element design and a 45A amp rating.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: FLSR45

Technical Specifications

• Safety Standards: California Prop 65 Yes
• Specification: Amp Rating 45
• Exterior Dimensions (D) (inches): 6.000000
• Exterior Dimensions (W) (inches): 12.000000
• Exterior Dimensions (H) (inches): 2.000000
• Voltage Ratings AC: 600V
• Voltage Ratings DC: 300V
• Ampere Rating: 45
• Interrupting Ratings AC: 200 kA rms symmetrical, 300 kA rms symmetrical (Littelfuse self-certified)
• Interrupting Ratings DC: 20 kA
• Approvals Standard: 248-12, Class RK5
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)
• Federal Specification: WF-1814
