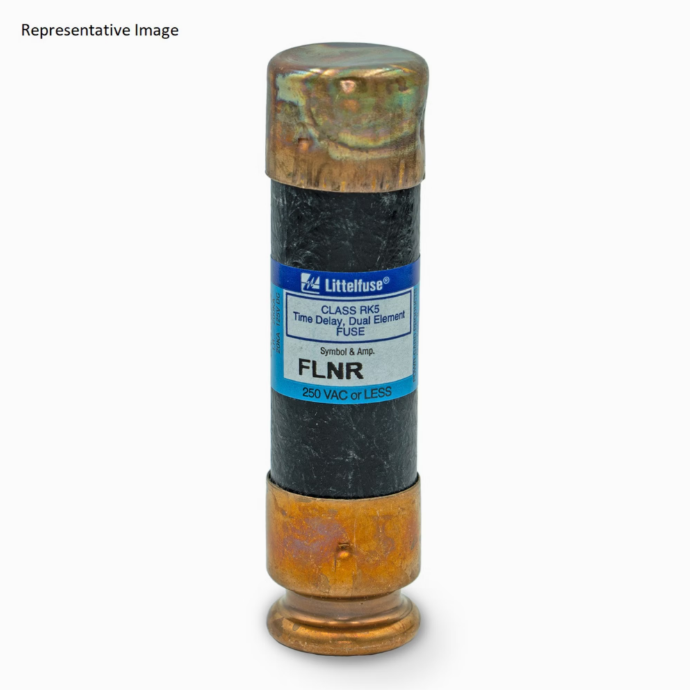

CARRIER FLNR050.T - Class RK5 Time-Delay Fuse

Product Description

The CARRIER FLNR050.T is a Class RK5 time-delay fuse designed for circuit protection. This dual-element fuse has a current rating of fifty amps and is suitable for use with a voltage rating of two hundred fifty VAC or fifteen VDC. The fuse is built to interrupt circuits at a rating of twenty thousand amperes. It features a cartridge terminal for secure connections and uses clip mounting for installation ease. It is ideal for applications requiring time-delay functionality. This fuse is UL listed and meets CSA standards.

• Time-delay functionality allows temporary overloads without circuit interruption.
• Interrupting rating of twenty thousand amperes at 250 VAC and 15 VDC.
• Complies with UL and CSA standards.

Product Highlights

Designed for durability and reliable circuit protection, the CARRIER FLNR050.T helps safeguard electrical systems against overloads.

Product Information

Standard Information

• Brand: CARRIER
• MPN: FLNR050.T

Technical Specifications

• Weight: 1.3 lbs
• Dimensions: 3.1 inches x 4.1 inches x 1.8 inches
• Current Rating: 50A
• Voltage Rating: 250 VAC / 15 VDC
• Interrupting Rating: 20kA
• Type: Dual-element fuse
• Mounting Type: Clip mounting
• Certification: UL listed, CSA standards compliant
