CARRIER EF17BZ275 Reversing Valve

Product Description

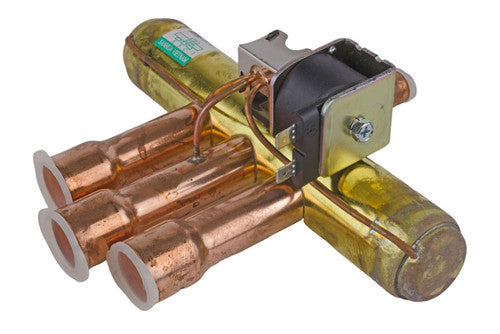

The CARRIER EF17BZ275 is a reversing valve for HVAC systems. It operates on a voltage of twenty-four volts at fifty or sixty Hertz. The power consumption is six or five watts. This valve is equipped with a half-inch inlet and a one-inch outlet. It measures seven and one-fourth inches in length. The reversing valve redirects the refrigerant flow in the system, allowing a switch between heating and cooling modes. This component is compatible with various CARRIER HVAC units and facilitates control of refrigerant flow based on the set operational mode.

• Operates on 24V at 50/60 Hz
• Features a 1/2 inlet and 1 outlet
• Measures 7-1/4 inches in length

Product Highlights

This reversing valve enables efficient system operation and reliable performance in various HVAC applications.

Product Information

Standard Information

• Brand: CARRIER
• MPN: EF17BZ275

Technical Specifications

• Manufacturer Part #: SHF-20D-47-02
• Voltage: 24
• Hertz: 50/60
• Wattage: 6/5
• Inlet: 1/2
• Outlet: 1
• Length: 7-1/4
