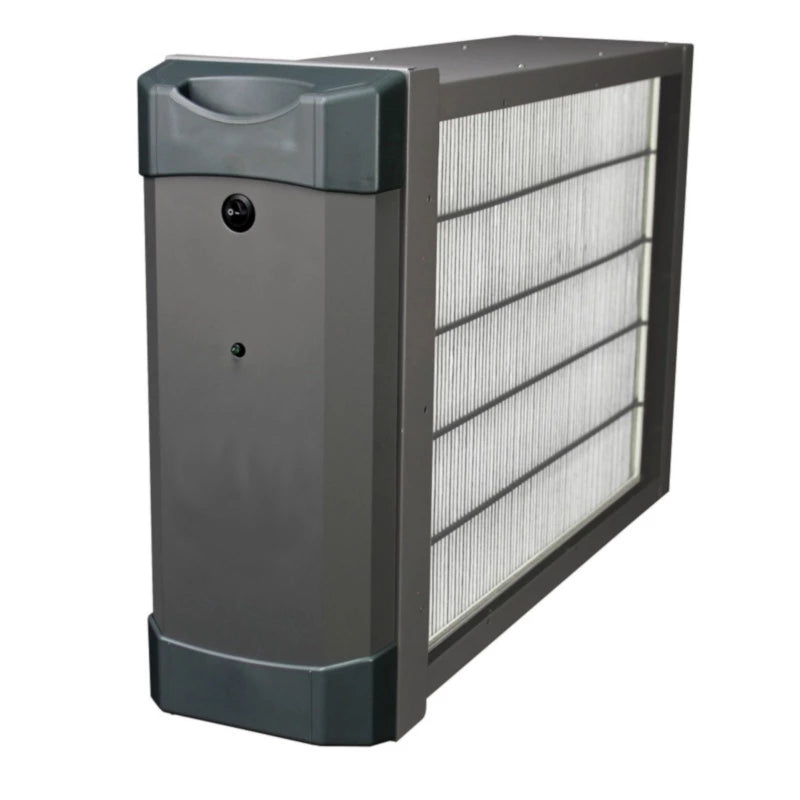

Carrier dgapaxx1625 Air Purifier 1750 Cfm 16x25

Product Description

The CARRIER dgapaxx1625 is a whole-home germicidal air purifier rated at 1750 CFM and sized to fit a 16-inch by 25-inch return air duct opening. It installs directly into the return air duct of a forced-air heating, cooling, or ventilation system. The unit uses an ionization array and a replaceable air purification cartridge to treat air as it cycles through the HVAC system. Designed for minimal maintenance, it is serviced by licensed HVAC technicians during routine system calls. The cabinet measures 27.68 inches in length, 7.25 inches in width, and 18.48 inches in height.

This unit is suited for residential and light-commercial forced-air systems where whole-home air treatment is required. It mounts in the return air duct, upstream of the air handler or furnace, and processes all conditioned air passing through the system. Maintenance intervals for cartridge replacement and ionization array cleaning will vary based on local air quality conditions and ductwork configuration. It is intended for installation by qualified HVAC professionals familiar with forced-air duct systems.

Key Features

• 1750 CFM airflow capacity for whole-home coverage
• Fits 16-inch by 25-inch return air duct openings
• Germicidal ionization array treats air passing through the duct system
• Replaceable air purification cartridge keeps maintenance straightforward
• Ionization array is serviceable via inspection and brush cleaning
• Designed for minimal maintenance between service intervals

Compatibility

Designed for installation in the return air duct of residential or light-commercial forced-air heating, cooling, and ventilation systems with a 16-inch by 25-inch duct opening.

Installation Notes

Installation is performed by a licensed HVAC technician. Power to the air handler or furnace must be shut off at the disconnect or breaker before any duct work or wiring is performed. The unit mounts in the return air duct and must be sealed to prevent bypass air leakage. Follow local mechanical codes and the manufacturer installation instructions for proper placement relative to the air handler.

Technical Specifications

• Airflow Capacity: 1750 CFM
• Duct Opening Size: 16 inches x 25 inches
• Length: 27.68 inches
• Width: 7.25 inches
• Height: 18.48 inches
• Weight: 27 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: dgapaxx1625
