Carrier DAMPSLB10X12 Zone Damper 10 inchesx12 inches

Product Description

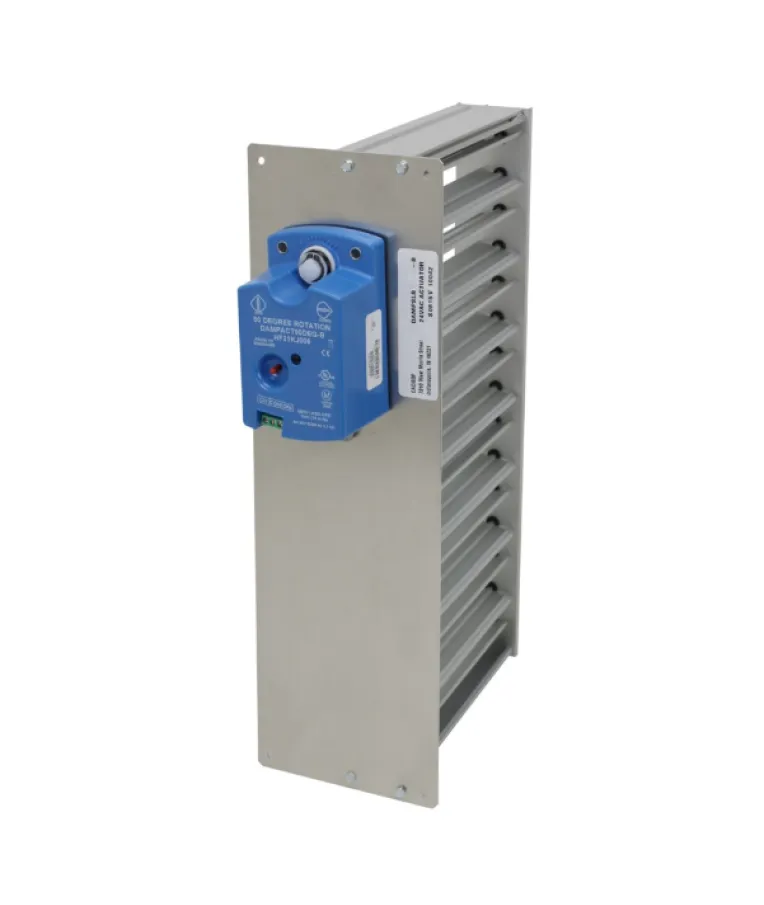

The Carrier DAMPSLB10X12 is a slip-in bottom mount zone damper with a compact actuator designed to save space during shipping, storage, and installation. The damper features a self-aligning shaft and actuator hub that requires no adjustment. It is compatible with all Carrier zoning systems and is designed for retrofit applications.

• Self-aligning shaft and actuator hub requires no adjustment
• Features spring-loaded disengagement for momentary blade release
• Terminals are recessed in plastic, eliminating the need to remove the cover for wiring

Product Highlights

This Carrier zone damper has a 15-second drive time and a 3-wire connection (Closed, Common, Open). The plastic hub protects the actuator from condensation.

Product Information

Standard Information

• Brand: Carrier
• Manufacturer Part Number: DAMPSLB10X12

Technical Specifications

• Voltage: 24 VAC
• Frequency: 60 Hz
• Phase: Single
• Shape: Rectangle
• Nominal CFM: 1000
• Mounting: Bottom
• Damper Type: Zone
• Emergency Heat Switch: No
• Power Method: Hardwired
• Damper Size: 10" x 12"
• Number of Wires: 3
• Electrical Connections: 14 to 22 AWG Plated Screw Terminal
• Timing: 15 sec Travel
• Domestic/Import: Domestic
