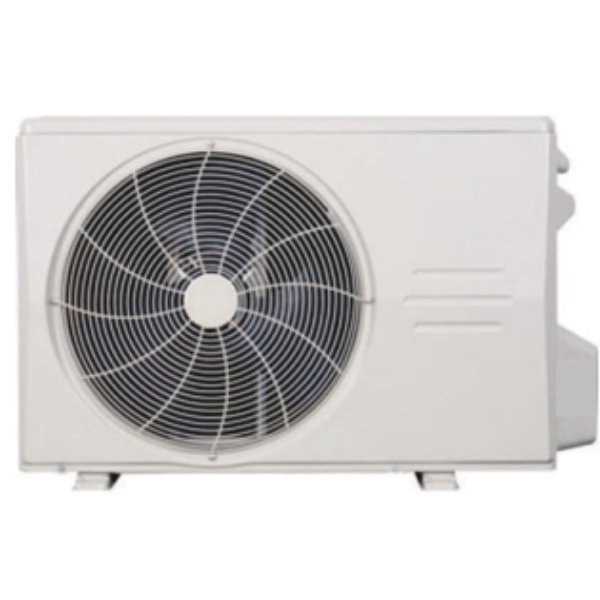

Carrier D5CUHAH36AAK Heat Pump Condensing Unit 36K 230V

Product Description

The CARRIER D5CUHAH36AAK is a residential-series heat pump condensing unit rated at 36,000 BTU/h and designed to operate on 230 volts. It uses R454B refrigerant, a lower global-warming-potential alternative to R410A that is increasingly specified in new residential installations. This outdoor unit houses the compressor and condenser coil and works in tandem with a matched indoor air handler to deliver both heating and cooling. Installation and service are performed by licensed HVAC technicians familiar with A2L refrigerant handling and low-GWP system requirements.

This condensing unit is intended for residential split-system heat pump applications. The R454B refrigerant charge and 230-volt single-phase electrical supply make it suitable for standard residential service panels. It is part of Carrier's DLS residential product line and is engineered for high-efficiency heating and cooling in single-family and light-commercial residential settings where updated refrigerant standards apply.

Key Features

• 36,000 BTU/h capacity supports whole-home heating and cooling loads in mid-size residential applications
• R454B refrigerant complies with current and pending low-GWP regulatory requirements
• 230-volt operation compatible with standard residential electrical service
• Outdoor condensing unit configuration for split-system heat pump installations
• Substantial cabinet construction at 204.15 pounds supports durable field deployment

Compatibility

Designed as an OEM-style residential heat pump condensing unit intended for use with a compatible matched indoor air handler in a split-system configuration. Consult Carrier's product documentation for approved indoor coil and air handler pairings specific to the D5CUHAH36AAK.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician qualified to handle A2L classified refrigerants such as R454B, which require attention to ignition source management during service. Disconnect and lock out all electrical power before servicing the unit. The outdoor unit must be installed on a level pad with adequate clearance per manufacturer specifications and local mechanical codes. Follow all applicable local, state, and national codes including NEC requirements for disconnect sizing and equipment grounding.

Technical Specifications

• Cooling and Heating Capacity: 36,000 BTU/h
• Voltage: 230 volts
• Refrigerant: R454B
• Unit Type: Heat Pump Condensing Unit
• Dimensions (L x W x H): 6.91 inches x 38.58 inches x 38.39 inches
• Weight: 204.15 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: D5CUHAH36AAK
