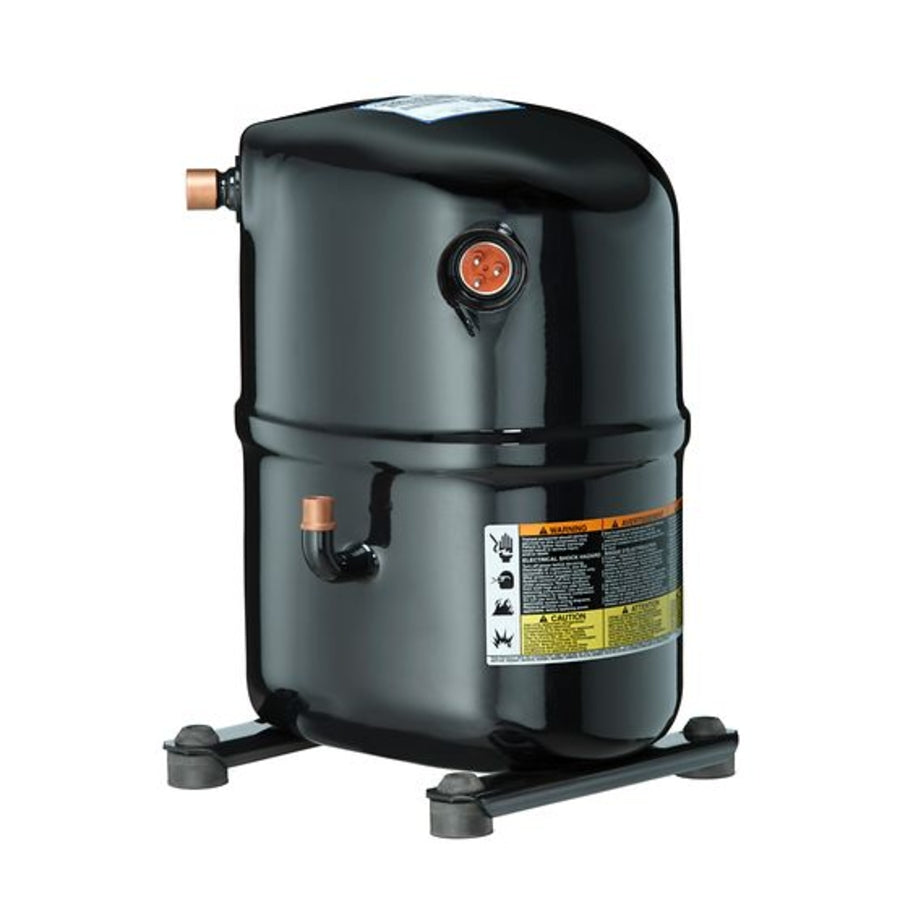

CARRIER CR42K6E-TFD-925 Compressor

Product Description

The CARRIER CR42K6E-TFD-925 is a hermetic reciprocating compressor designed for air conditioning and refrigeration. This unit operates with R-22 refrigerant and is suitable for three-phase systems. It is used in residential and commercial refrigeration setups.

• Hermetic reciprocating compressor design
• Operates with R-22 refrigerant
• Stub connections for system integration

Product Highlights

This compressor is ideal for various refrigeration tasks, ensuring reliable performance.

Product Information

Standard Information

• Brand: CARRIER
• MPN: CR42K6E-TFD-925

Technical Specifications

• Application: Refrigeration
• Refrigerant: R-22
• Voltage: 380/420/460 VAC
• Phase: Three
• Compressor Type: Reciprocating
• Housing: Hermetic
• BTU Output: 41,000
• Displacement: 4.4 in³/Rev
• Suction Line Size: 3/4 inches
• Discharge Connection Size: 1/2 inches
• Connection Type: Stub
• Oil Type: Polyolester (POE)
• Oil Charge Initial: 45 oz.
• Weight: 69 lbs
• Dimensions: 10.23 inches (L) x 9.65 inches (W) x 14.56 inches (H)
• Rated Load Amps: 5.7-6.4
• Locked Rotor Amps: 42
• Cycle/Hertz: 50/60 Hz
• Condensing Temperature: 100°F to 130°F
• Evaporating Temperature: 45°F
• Sound Level: 76-81 dBA
• Safety Standards: California Prop 65
