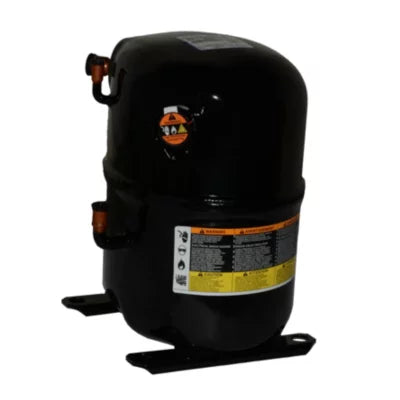

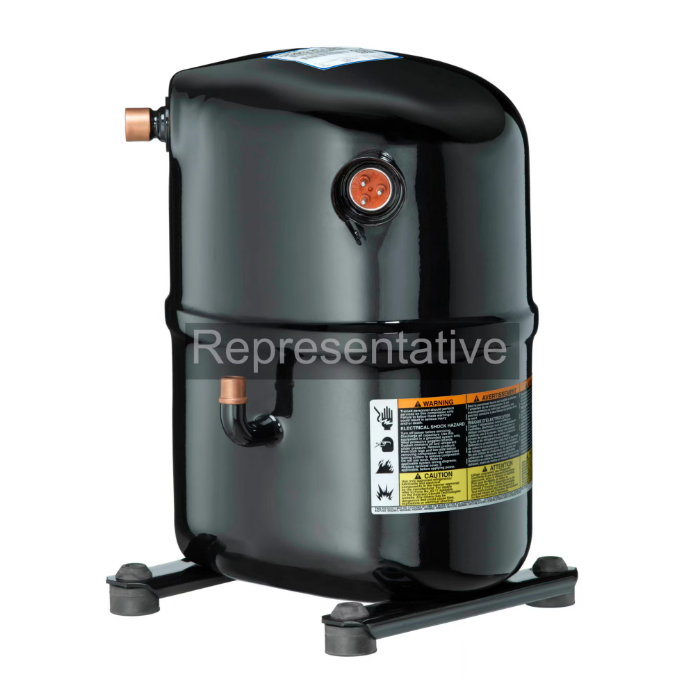

Carrier CR16K6E-PFV-775 Reciprocating Compressor

Product Description

The Carrier CR16K6E-PFV-775 is a Copeland reciprocating compressor designed for R-22 refrigerant. This single-phase compressor offers a capacity range from fifteen thousand one hundred fifty to twenty-one thousand nine hundred BTUs.

• Utilizes R-22 refrigerant.
• Features a hermetic compressor housing for low noise.
• Equipped with external line break overload protection.

Product Highlights

This compressor provides reliable operation and durability in air conditioning systems.

Product Information

Standard Information

• Brand: Copeland
• Compressor Type: Reciprocating

Technical Specifications

• Refrigerant: R-22
• Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• BTU Output: 15,150-21,900
• Locked Rotor Amps (LRA): 49
• Rated Load Amps (RLA): 8.6, 9.6
• Weight: 61 lbs
• Length: 10.23 inches
• Width: 9.65 inches
• Height: 13.19 inches
• Mounting Dimensions: 7.5 x 7.5 x 13.56
• Discharge Connection Size (OD): 1/2
• Suction Line Size (OD): 3/4
• Oil Type: Mineral or Polyolester
• Oil Charge Initial: 45 Oz.
• Evaporating Temperature: 45°F
• Return Gas Temperature: 65°F
• Mass Flow: 220 lbs/hr; 272 lbs/hr.
• Compressor Housing: Hermetic
• Approvals: UL Listed
