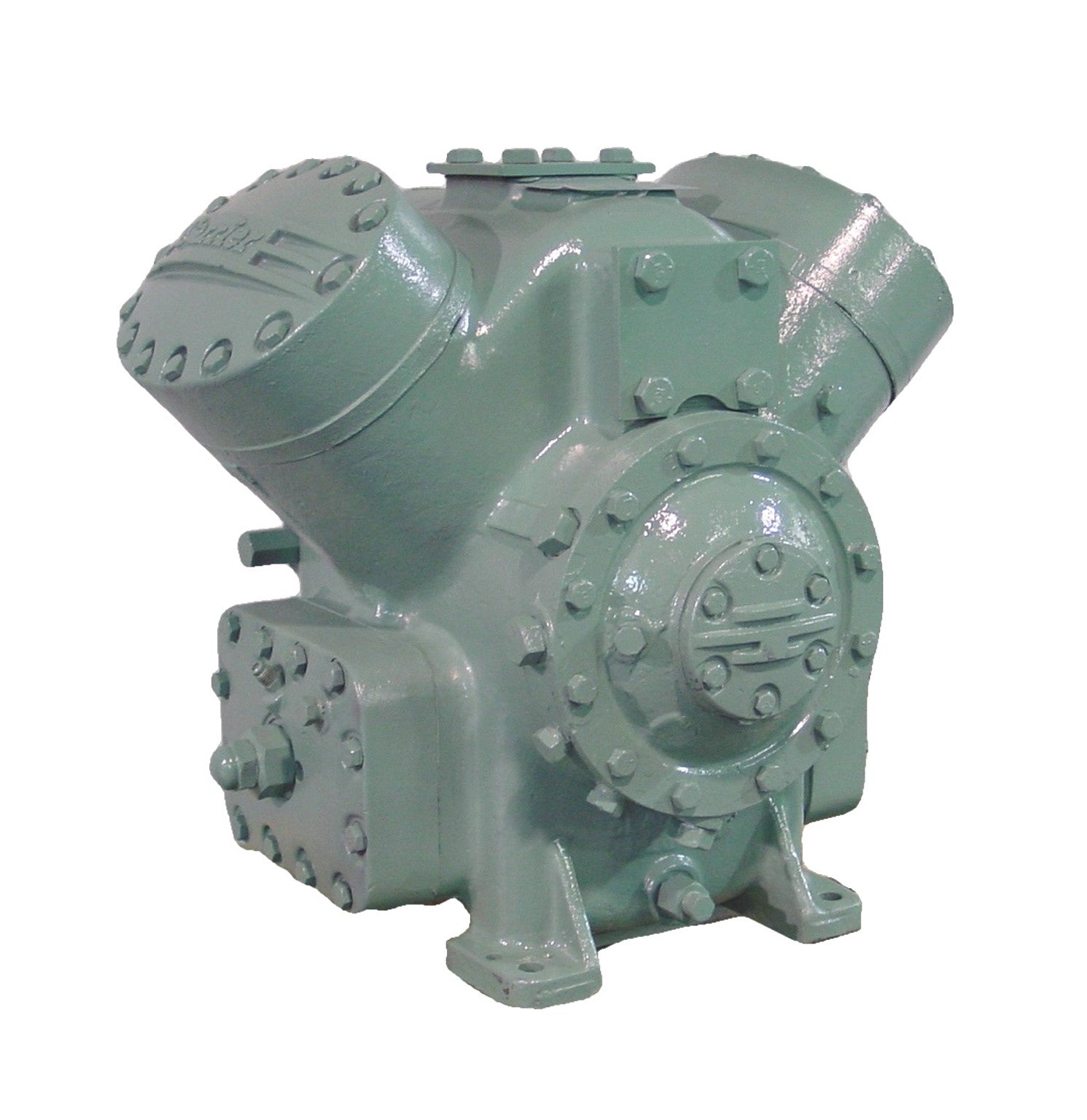

CARRIER 5F40A219 Reciprocating Compressor

Product Description

The CARRIER Carlyle 5F40A219 is a semi-hermetic reciprocating compressor tailored for use with refrigerants R12, R22, and R502. It supports automatic unloaded starting and incorporates a high-efficiency motor for optimal operation. The design promotes smooth refrigerant flow and features a reliable two-piece shaft seal assembly, ensuring efficiency and longevity.

• Automatic unloaded starting capability
• Innovative two-piece shaft seal for reliability
• Capacity control reducing operation to 35%

Product Highlights

This compressor is widely used in various temperature applications, including high, medium, and low-temperature setups.

Product Information

Standard Information

• Manufacturer: CARRIER
• Country of Origin: US

Technical Specifications

• MPN: 5F40A219
• Tonnage: 20
• CFM at 1750 RPM: 39.8
• Unloading Options: 25%, 50%, 75%
• Minimum Required RPM: 800
• Oil Charge: 1.5 liters
• Weight: 32 lbs
• Length: 22 inches
• Width: 19 inches
• Height: 20 inches
• Shipping Weight: 355 lbs
• Application: High Temp, Medium Temp, Low Temp
• Connection Discharge: 1 3/8 inches
• Connection Suction: 1 5/8 inches
• Displacement at 1100 RPM: 1,571 CFH
• Displacement at 1750 RPM: 2,380 CFH
• Horsepower: 10 to 20
• Number of Cylinders: 4
• Refrigerant Compatibility: R12, R22, R502
• Drive Type: Belt/Direct
• Voltage: No Motor
