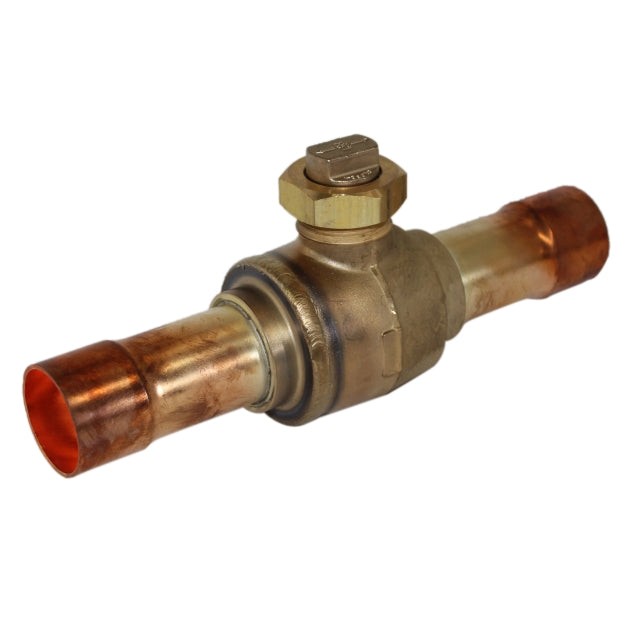

CARRIER 592WA-13ST Ball Valve

Product Description

The CARRIER 592WA-13ST is a ball valve built for efficient shutoff applications. This valve features a forged brass body with copper tube extensions and incorporates mechanical internal forged stops for durability. By utilizing a quarter turn actuation, users can easily switch from fully open to fully closed positions. The valve is designed with dual PTFE ball seals and dual stem seal designs, enhancing its application in refrigeration systems.

• Forged brass body construction
• 1/4 turn actuation for quick operation
• Ideal for refrigeration applications

Product Highlights

This ball valve enables reliable shutoff functionality and is advantageous for refrigeration systems.

Product Information

Standard Information

• Brand: CARRIER
• MPN: 592WA-13ST

Technical Specifications

• Valve Type: Ball Valve
• Connection Type: Sweat or Braze
• Connection Size: 1 3/8
• Inlet Connection Size: 1-3/8 inches
• Outlet Connection Size: 1-3/8 inches
• Body Material: Brass
• Maximum Pressure (PSI): 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• Weight: 4.00 lbs
• Length: 8.9 inches
• Width: 2.5 inches
• Height: 3.8 inches
• Application: Refrigeration
• UL Listed: True
