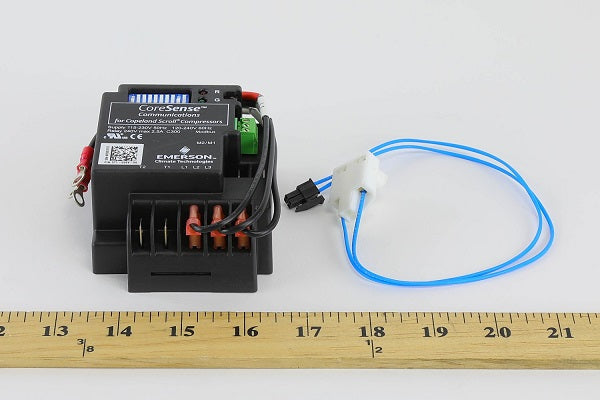

Carrier 571-0064-06 Coresense Protector Module Kit

Product Description

The CARRIER 571-0064-06 is a CoreSense protector module kit designed for use with Copeland compressors operating on 120 or 240 volt power supplies. CoreSense technology integrates diagnostic and protection functions directly at the compressor, monitoring for conditions such as overcurrent, overtemperature, and voltage faults. The module helps protect the compressor from damage caused by abnormal operating conditions and supports faster fault diagnosis in the field. Licensed HVAC technicians performing compressor service or replacement will find this kit provides the sensing and protection hardware needed to restore proper system operation.

This protector module kit is suited for residential and light commercial refrigeration and air conditioning systems equipped with Copeland scroll or reciprocating compressors that support CoreSense protection. It is applicable in systems where the original protector module has failed or requires replacement as part of a compressor service procedure. The dual voltage compatibility at 120 and 240 volts broadens its range of application across common North American system configurations.

Key Features

• Compatible with both 120 volt and 240 volt compressor applications
• CoreSense diagnostic and protection functionality monitors compressor health in real time
• Designed to protect compressors from overcurrent, overtemperature, and voltage fault conditions
• Kit format includes the components needed for a complete module replacement
• Supports faster field diagnosis by providing fault indication at the compressor

Compatibility

Designed as an OEM-style replacement protector module for Copeland compressors equipped with CoreSense protection capability operating on 120 or 240 volt circuits.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing module or handling any compressor wiring. Verify system voltage matches the module requirements before energizing the system. Follow all applicable local electrical codes and the compressor manufacturer service documentation during installation.

Technical Specifications

• Voltage: 120 volts / 240 volts
• Function: CoreSense Protector Module

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 571-0064-06
