Carrier 45mbcq02xxx4 Ductless Cassette Grille Panel R454B

Product Description

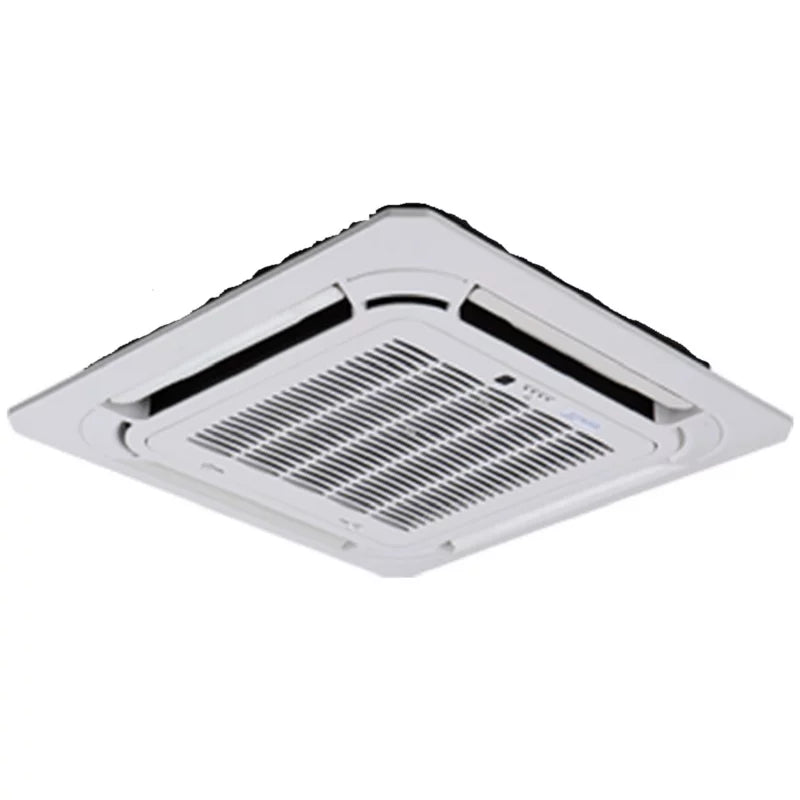

The CARRIER 45mbcq02xxx4 is a replacement cassette grille panel designed for the 45MBCAQ series ductless mini-split indoor units running on R454B refrigerant. This panel serves as the decorative and functional face of the ceiling cassette, housing the return air grille and directional louver assembly. It is installed on the visible underside of the cassette unit and must be correctly seated to ensure proper airflow distribution across the conditioned space. Sized at 40.75 inches by 40.75 inches with a profile depth of 3.54 inches, this panel is a direct OEM-style replacement part sourced through Factory Authorized Parts. Licensed HVAC technicians performing maintenance, replacement, or commissioning on compatible cassette systems will typically handle this component.

This grille panel is suited for ceiling cassette mini-split installations in both residential and light commercial applications. It is specifically matched to CARRIER 45MBCAQ series indoor cassette units in the 24,000 to 48,000 BTU/h capacity range that operate on R454B refrigerant. Common install scenarios include drop-ceiling commercial spaces, open-plan residential areas, and multi-zone systems where a flush ceiling-mount cassette is the preferred indoor unit style.

Key Features

• Direct replacement grille panel for 45MBCAQ series R454B ductless cassette indoor units
• Covers 24,000 to 48,000 BTU/h capacity range within the 45MBCAQ model family
• Large panel footprint at 40.75 inches by 40.75 inches for full cassette face coverage
• Low-profile design at 3.54 inches depth for flush ceiling integration
• Sourced as a Factory Authorized Parts component for OEM-grade fitment
• Proposition 65 compliant labeling required for California installations

Compatibility

Designed for use with CARRIER 45MBCAQ series ductless ceiling cassette indoor units in the 24,000 to 48,000 BTU/h range operating on R454B refrigerant, as specified in the product data.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with ductless mini-split systems. Power to the indoor unit must be disconnected at the circuit breaker and the unit allowed to discharge before handling the panel assembly. Ensure the cassette body is properly supported before removing or reattaching the grille panel, as the component is large and weighs approximately 19.84 pounds. Follow the manufacturer's service documentation for correct panel alignment and latch engagement to maintain proper airflow performance.

Technical Specifications

• Length: 40.75 inches
• Width: 40.75 inches
• Height: 3.54 inches
• Weight: 19.84 pounds
• Country of Origin: China
• Proposition 65: Yes

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 45mbcq02xxx4
