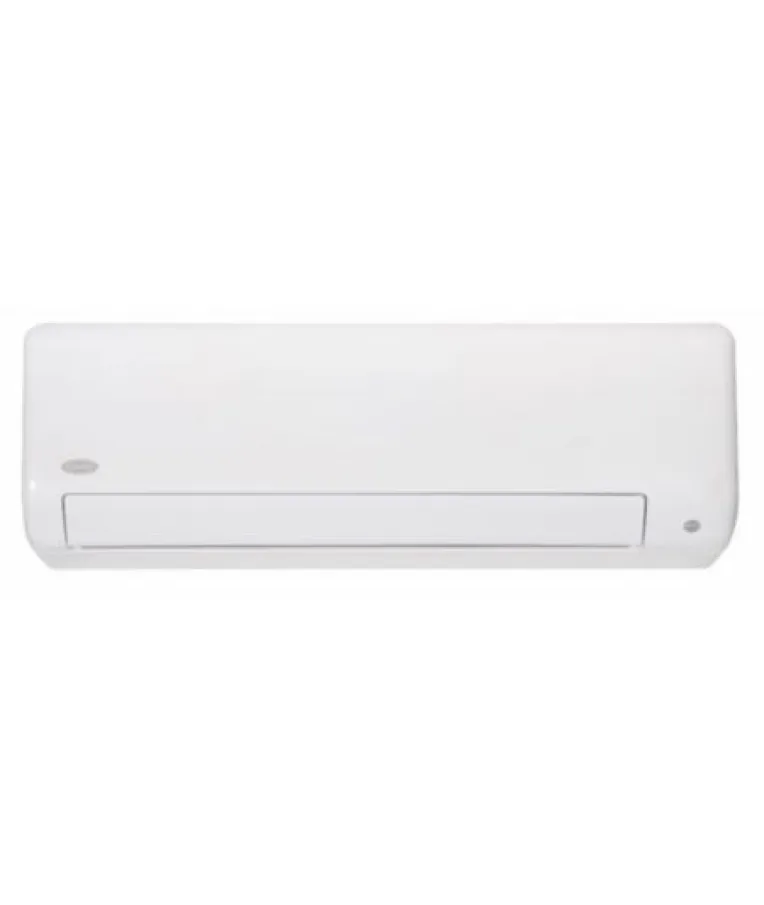

Carrier 40MBABQ36XA3 Ductless Indoor Air Handler Performance Series 208/230V 3.0T

Product Description

The CARRIER 40MBABQ36XA3 ductless, single-zone heat pump from the Performance Series is an air handler heat pump that easily connects with traditional ducted systems or replaces outdated gas furnaces. It can be installed in four different positions for maximum flexibility. The 40MBA* multi-poise air handler has a variable-speed ECM motor that synchronizes with select Carrier Inverter Ductless heat pump models.

• Easily connect with traditional ducted systems or replace outdated gas furnaces
• Install in four different positions for maximum flexibility
• Variable-speed ECM motor

Product Highlights

This Carrier ductless indoor air handler features multiple modes including cool, heat, dry, fan, and auto, with quiet indoor operation and an included wireless remote controller.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 40MBABQ36XA3

Technical Specifications

• MfgNum: 40MBABQ36XA3
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Mini-Splits
• SubSubCat: Indoor
• ItemNum: 40MBABQ36XA3
• Vendor Name: Carrier
• Voltage: 208/230V
• Capacity: 3.0T
• Equipment Type: Ductless High Wall
• Wired Remote Controller: Optional
• Wireless Remote Controller: Standard
• Blower Motor Type: Variable Speed ECM
• Cooling Capacity: 36000
• Cooling Rated Capacity (Btu/h): 36000
• Heating Capacity: 20400-23600
• CFM: 382-843
• EER: 8.5
• SEER: 17.5
• Refrigerant: R410A
• Tonnage: 3 Ton
• Motor Phase: 1
• Cycle/Hertz: 60 Hz
• Drain Connection Size: 5/8″
• Liquid Line Size (OD): 3/8″
• Suction Line Size (OD): 5/8″
• Sound Level (dBA): 39-52
• Product Height (in.): 14.57”
• Product Width (in.): 44.88”
• Product Depth (in.): 10.83”
