Product Description

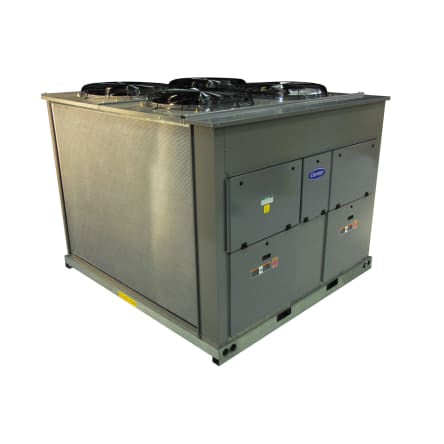

The CARRIER 38APHSCALECA10 is a Gemini Select 38 Series outdoor air-cooled condensing unit designed for commercial cooling applications. With independent refrigerant circuits and efficient hermetic scroll compressors, this unit connects seamlessly to Carrier indoor air-handling units using refrigerant lines and control wiring.
- Two independent refrigerant circuits for enhanced efficiency.
- Durable galvanized steel cabinet for weather protection.
- Supports both rooftop and ground-level installation.
Product Highlights
This unit provides effective cooling through innovative design, making it suitable for various commercial settings.
Product Information
Standard Information
-
Brand: CARRIER
-
MPN: 38APHSCALECA10
Technical Specifications
-
Refrigerant: Puron Refrigerant (R-410A)
-
Nominal Tons (38APD): 25 to 130
-
Nominal Tons (38APS): 25 to 65
-
Condensing Unit EER: up to 11.5
-
Condensing Unit IPLV: up to 16.2
-
Unit Performance: rated in accordance with AHRI Standard 365
-
Circuit Type: Full capacity range dual-circuit units (025-130 sizes), single-circuit units (025-065 sizes)
-
Compressor Type: Hermetic scroll compressors with option for digital compressor for superior part-load performance
-
Compressor Mounting: Compressor with neoprene isolators and oil heater(s)
-
Protection Features: High and low-pressure protection, compressor overload protection, loss of charge, and low suction superheat protection
-
Controls: Self-contained 24V CCN (Carrier Comfort Network) controls including transformer, low ambient head pressure control
-
Approvals: UL, CSA, and ETL approved
