Carrier 34SCA548W003 14.3 SEER2 4.0T Comfort Horizontal 208/230-1

Product Description

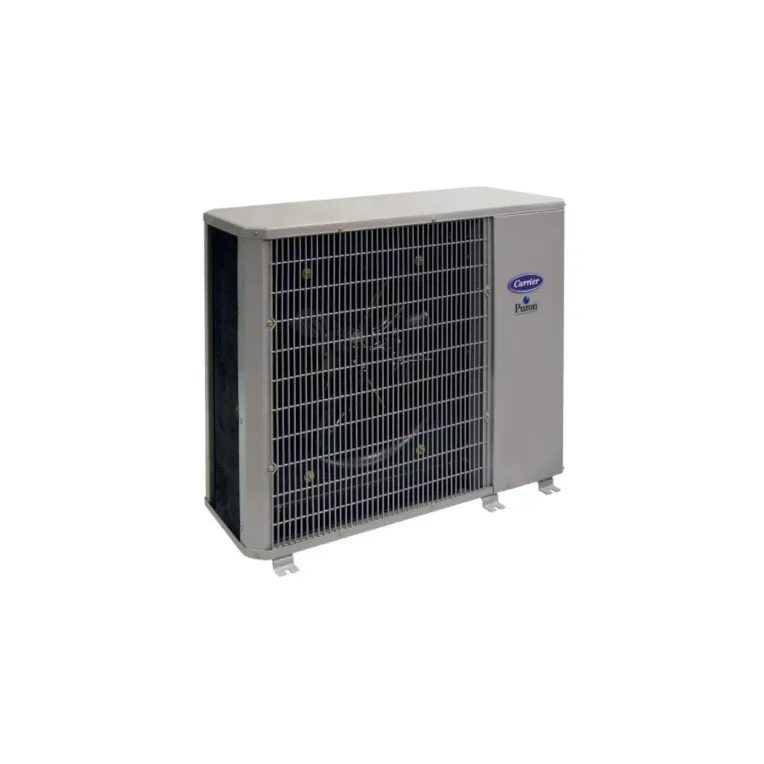

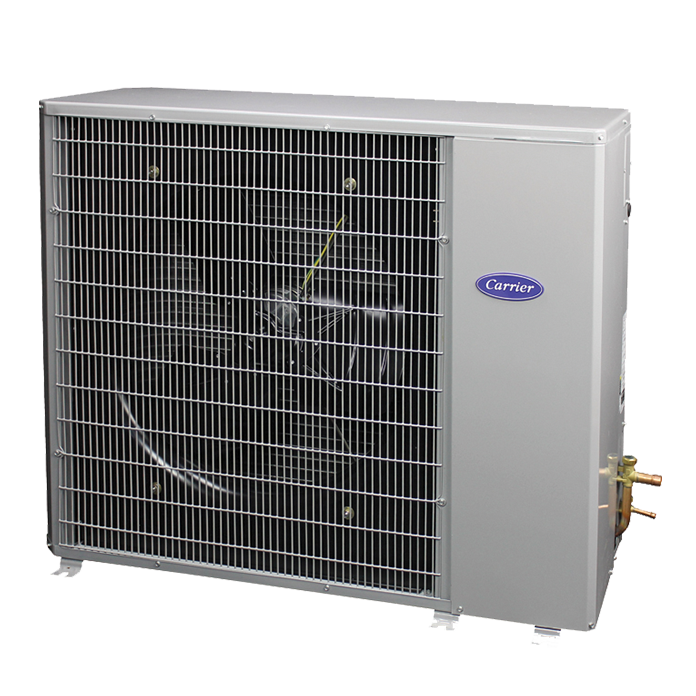

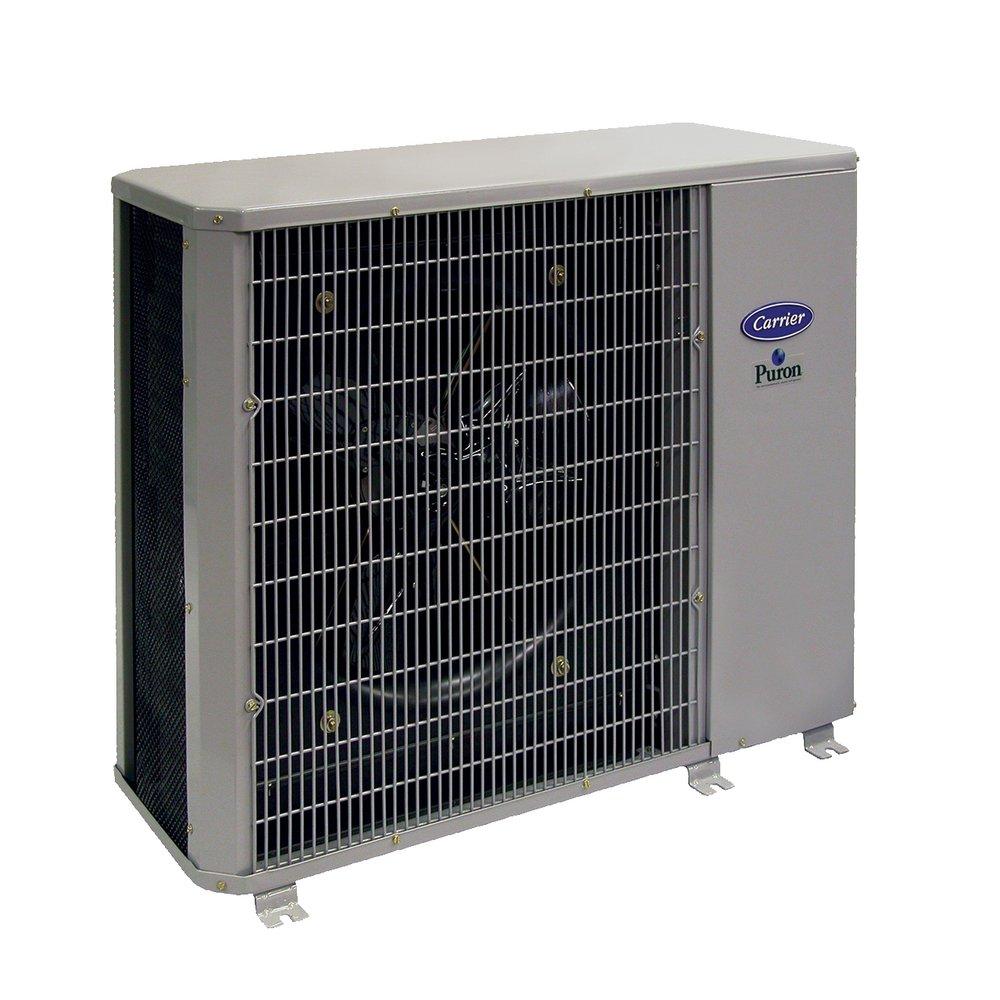

The CARRIER 34SCA548W003 is a 14.3 SEER2 Comfort Series horizontal air conditioner with Puron refrigerant. This single-stage unit is designed for southwest AC applications and operates on 208/230-1 voltage. It features a scroll compressor and provides 48,000 Btuh of cooling capacity. The unit is designed for horizontal airflow.

• 1-Stage gas stages
• Horizontal configuration
• Scroll compressor

Product Highlights

The CARRIER 34SCA548W003 is a Comfort Series horizontal air conditioner with 48,000 BTU cooling.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 34SCA548W003

Technical Specifications

• Brand: Carrier
• Configuration: Horizontal
• Family: Comfort
• Gas Stages: 1-Stage
• Line Voltage (60Hz): 240V
• Nominal Seer: 14
• Refrigerant: R410A
• Tonnage: 4 Ton
• Air Flow: Horizontal
• Compressor: Scroll
• Condenser Motor Type: Propeller Type, Direct Drive
• Frequency: 60
• Motor Phase: 1
• Sound Blanket: False
• UL Listed: Yes
• Weight: 243 lb
• BTU: 48000
• BTU Cooling Rating: 48000 Btu/h
• CFM: 2785
• Collection: Comfort™
• Decibel Rating (dB): 65 dB
• EER: 13.0
• EER2: 13
• EER2 Range: 11.7 - 23.0
• Horsepower: 1/4 hp
• Liquid Line (OD): 3/8
• MBH: 48
• Max Fuse Size: 40
• Phase: Single Phase
• RPM: 850
• SEER2: 16
• SEER2 Range: 15.2 - 40.0
• Suction Line (OD): 7/8
• Volts: 208/230V
• A2L Compatible: No
• AMP: 1, 19.9, 110
