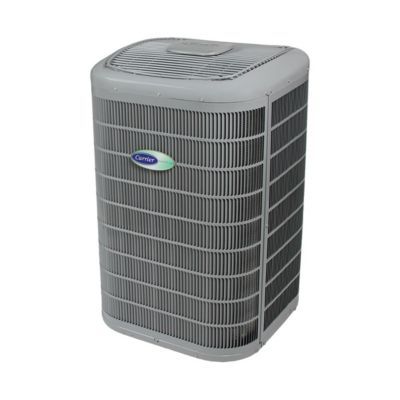

Carrier 25VNA860A003 Infinity - 5 Ton 18 SEER Residential Variable Speed Heat Pump Condensing Unit

Product Description

The CARRIER 25VNA860A003 Infinity heat pump offers high-efficiency variable speed performance. It provides up to 11 HSPF heating efficiency and up to 18 SEER cooling efficiency. The variable speed inverter capacity control delivers up to 5 stages of operation for exceptional load matching, dehumidification and zoning performance. Designed for flexible system matching with a wide variety of indoor units and controls.

• Up to 19 SEER / 13 EER / 11 HSPF
• Microtube Technology refrigeration system
• WeatherArmor Ultra system

Product Highlights

High-efficiency variable speed heat pump with up to 18 SEER cooling and 11 HSPF heating efficiency. Features variable speed inverter, 5 stages of operation, and flexible system matching.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 25VNA860A003
• Country of Origin: USA

Technical Specifications

• MfgNum: 25VNA860A003
• Main Category: HVAC
• Category: HVAC Equipment
• SubCat: Heat Pumps
• SubSubCat: Residential
• ItemNum: 25VNA860A003
• Vendor Name: Carrier
• SKU: CS4225253
• AHRI - Usage: Outdoor
• Brand: Carrier
• CFM: 4,500
• Condenser Motor HP: 1/3
• Condenser Motor RPM: 300
• Condenser Motor Speeds: Variable
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 55,000-57,000
• Cooling Rated Capacity Btu/h: 60000
• COP: 2.94-3.18
• Cycle/Hertz: 60 Hz
• EER: 9-10.1
• Energy Star Rated: true
• Equipment Type: Heat Pump
• Full Load Amps: 1.32
• Heating Capacity: 60,000
• HSPF: 8.2-10
• Inverter: true
• Liquid Line Size (OD): 3/8"
• Maximum Piping Length: 100'
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• OPT Code: 1P25VNA860A003
• Phase: Single
• Product Family: 25VNA8
• Prop 65: true
• Refrigerant: R-410A
• SEER: 18
• Sound Level (dBA): 73
• Substantial Commodity: Steel; Copper; Aluminum
• Suction Line Size (OD): 1 1/8"
• Tonnage: 5
• Voltage: 208-230 VAC
• Liquid Line Fitting Type: Sweat or Braze
• Locked Rotor Amps (LRA): 42
• Rated Load Amps (RLA): 31.3
• Suction Line Fitting Type: Sweat or Braze
• Height: 43.1875
• Length: 31.1875
• Width: 31.1875
• Maximum Overcurrent Protection (MOCP): 60
• Compressor Type: Rotary
• Condenser Fan CFM: 4500
• Approvals: UL Listed; UL Recognized
• Condenser Coil Fins per Inch (FPI): 20
