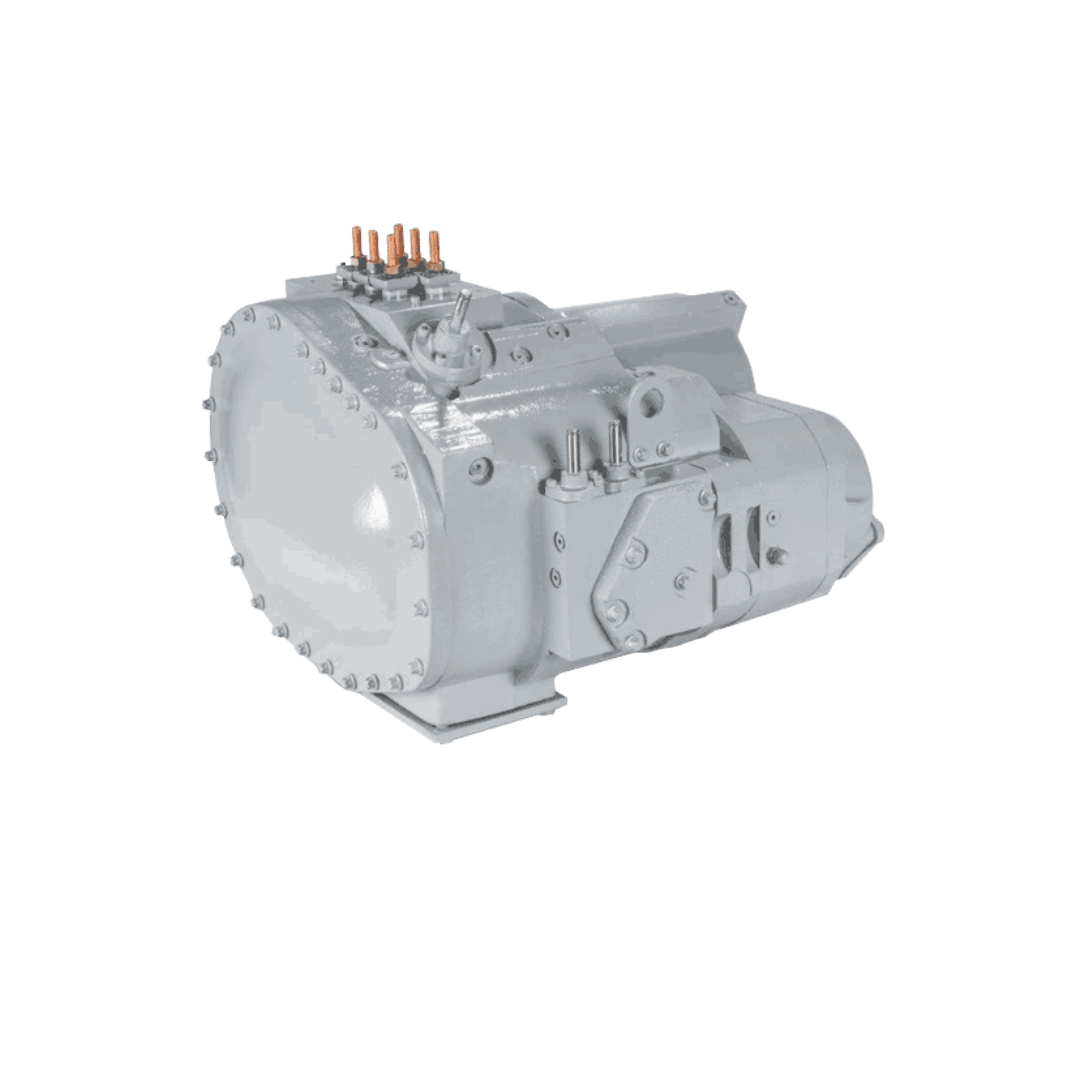

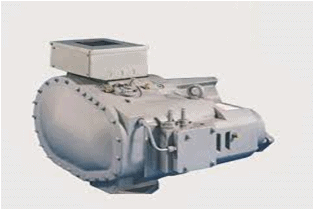

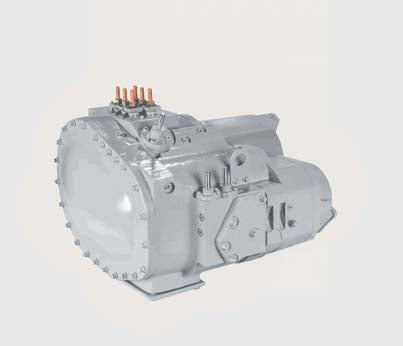

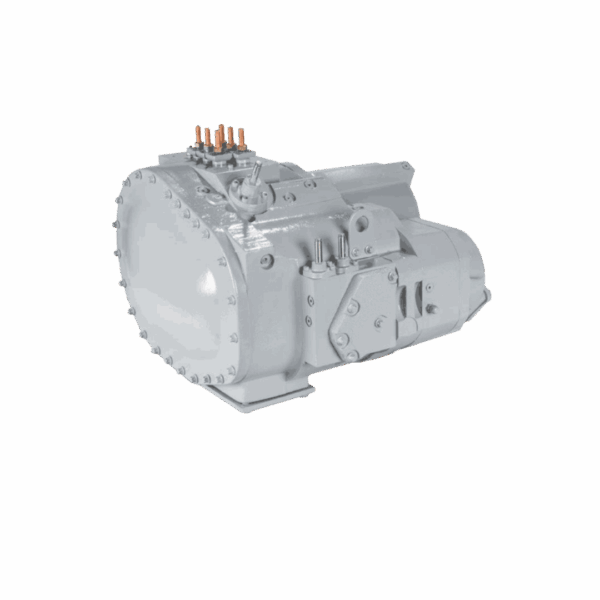

CARRIER 2146 Screw Compressor

Product Description

The CARRIER 2146 is a screw compressor designed for HVAC and water cooling systems. Its robust construction features a liquid-cooled motor, making it effective for various applications. This model operates using POE oil and R134a refrigerant and incorporates a twin screw design, enhancing efficiency.

• Designed for HVAC and water cooling applications.
• Features a twin screw design for improved performance.
• Compatible with R134a refrigerant, suitable for diverse systems.

Product Highlights

This compressor is suitable for commercial HVAC systems, ensuring reliable operation and efficiency under different conditions.

Product Information

Standard Information

• Manufacturer: CARRIER
• Application: HVAC

Technical Specifications

• Model Number: 06 NW 2146
• Displacement at 60Hz: 146 CFM
• Displacement at 50Hz: 203 m3/h
• Horsepower: 40 TON
• Oil Type: POE
• Voltage: 460V-3P-50/60Hz
• Cylinder Type: Twin Screw
• Refrigerant: R134a
• Volumetric Capacity: 207 m3/h
• Starter Type: Star/Delta
• Power Input: 37.1 kW
• Shipping Weight: 365 kg
