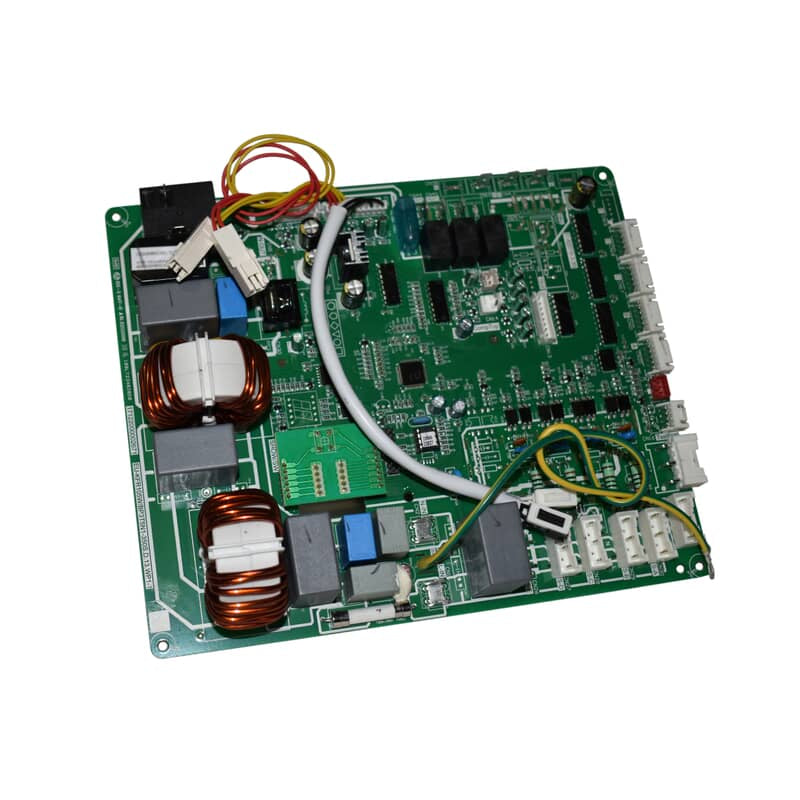

Carrier 17122300a00569 Main Control Board

Product Description

The CARRIER 17122300a00569 is a main control board designed as a genuine OEM replacement for Carrier HVAC systems. The control board serves as the central processing component of the system, managing operational sequences, safety lockouts, and communication between system components. Licensed HVAC technicians install this board when the original fails due to component damage, power surge, or end-of-life failure. At 1.7625 pounds, it is a direct drop-in replacement intended to restore original system function without modification.

This main control board is suited for residential and light commercial HVAC applications where Carrier OEM parts are specified. It is typically installed during a service call when diagnostic codes or physical inspection point to control board failure. The board governs core system logic and is a common replacement item in compressor, fan, and safety-circuit troubleshooting scenarios.

Key Features

• Genuine OEM replacement part for Carrier HVAC systems
• Main control board manages system sequencing and safety lockout functions
• Direct replacement design supports straightforward swap-out service
• Weighs 1.7625 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement main control board for Carrier HVAC systems. Verify compatibility with the specific system model number before ordering.

Installation Notes

A licensed HVAC technician should perform this replacement. Disconnect all power to the unit at the disconnect and breaker before removing the existing board. Observe proper static discharge precautions when handling the board, as electrostatic discharge can damage sensitive components. Refer to the system wiring diagram during reinstallation to ensure all connectors are seated correctly before restoring power.

Technical Specifications

• Weight: 1.7625 pounds

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 17122300a00569
