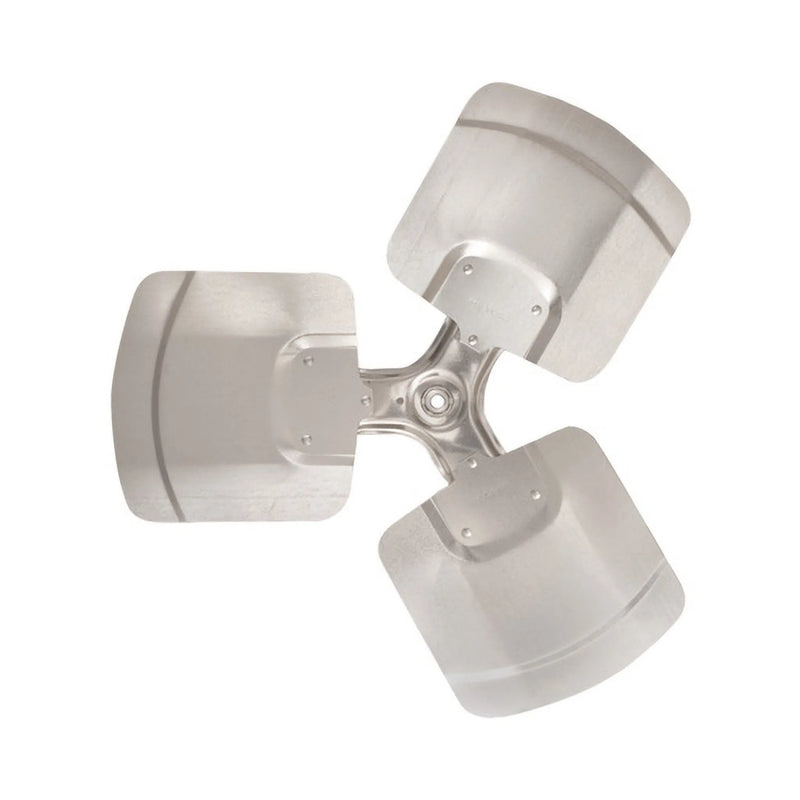

Carrier 1173853 ICP Comfortmaker Tempstar Replacement Condenser Motor Fan Blade 3 Blade 1173853

Product Description

The CARRIER 1173853 is an aftermarket condenser motor fan blade designed for HVAC systems. Constructed from aluminum, this 3-blade fan features a 20-inch diameter and a 0.500-inch bore, with a 26-inch pitch diameter. It operates with CW rotation and has an intake hub location, serving as a direct replacement for Carrier Bryant Payne part number 1173853.

• Aftermarket replacement for Carrier Bryant Payne part number 1173853
• CW Rotation with a 0.500 inch Bore
• 20 inch Diameter aluminum blade with 3 blades and 26 inch Pitch Diameter

Product Highlights

Durable aluminum condenser motor fan blade, designed for efficient air movement in HVAC units, replacing Carrier Bryant Payne 1173853.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 1173853

Technical Specifications

• Rotation: CW
• Bore Diameter: 0.500 In.
• Diameter: 20 In.
• Material: Aluminum
• Hub Location: Intake
• Number of Blades: 3
• Pitch Diameter: 26 In.
