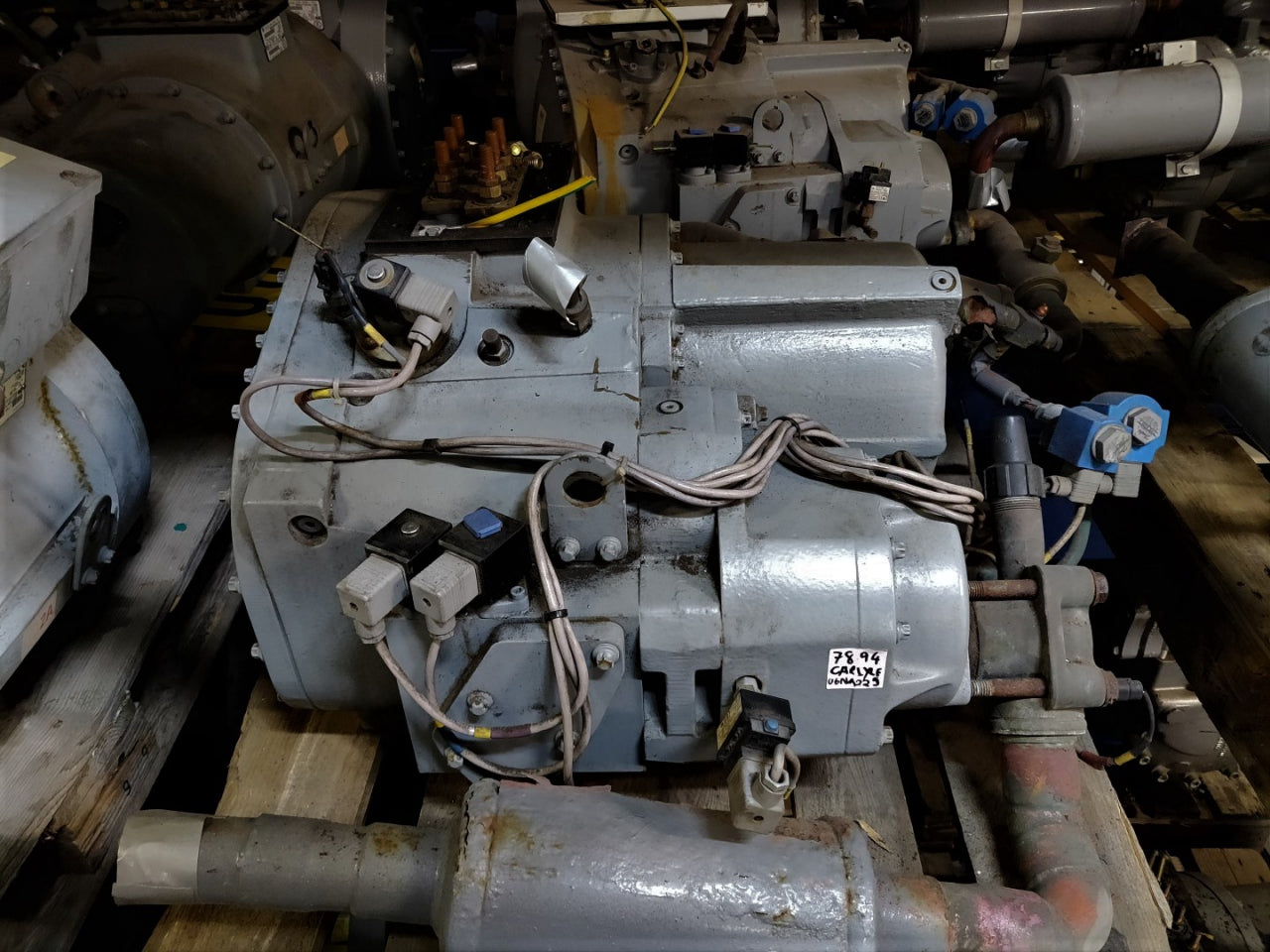

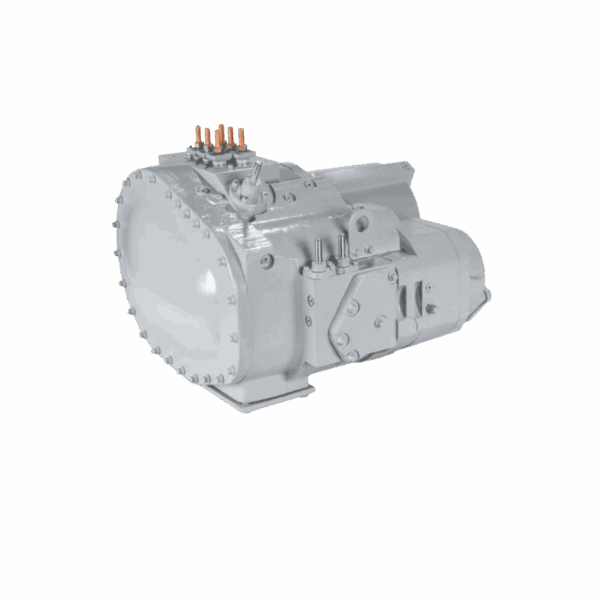

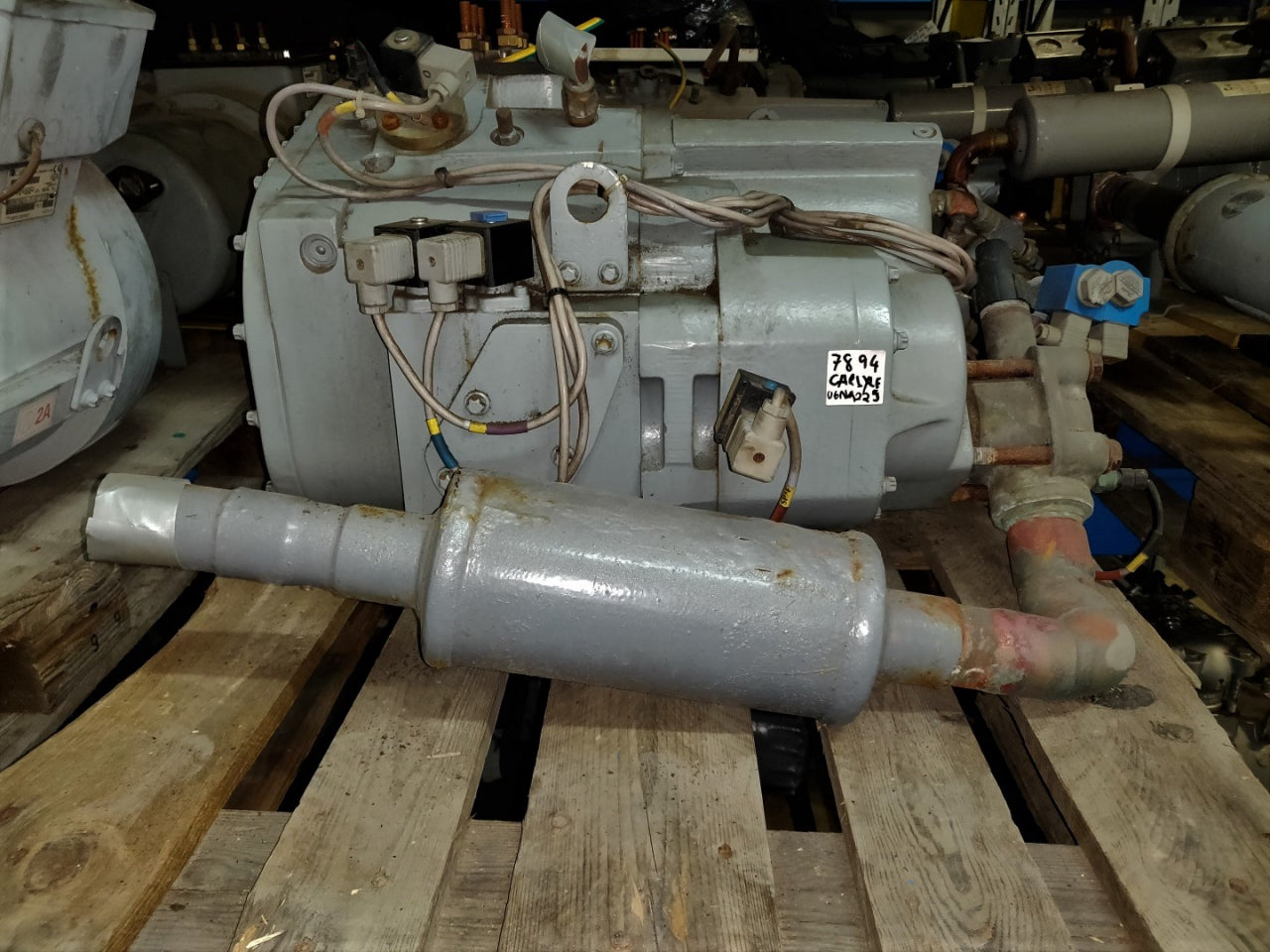

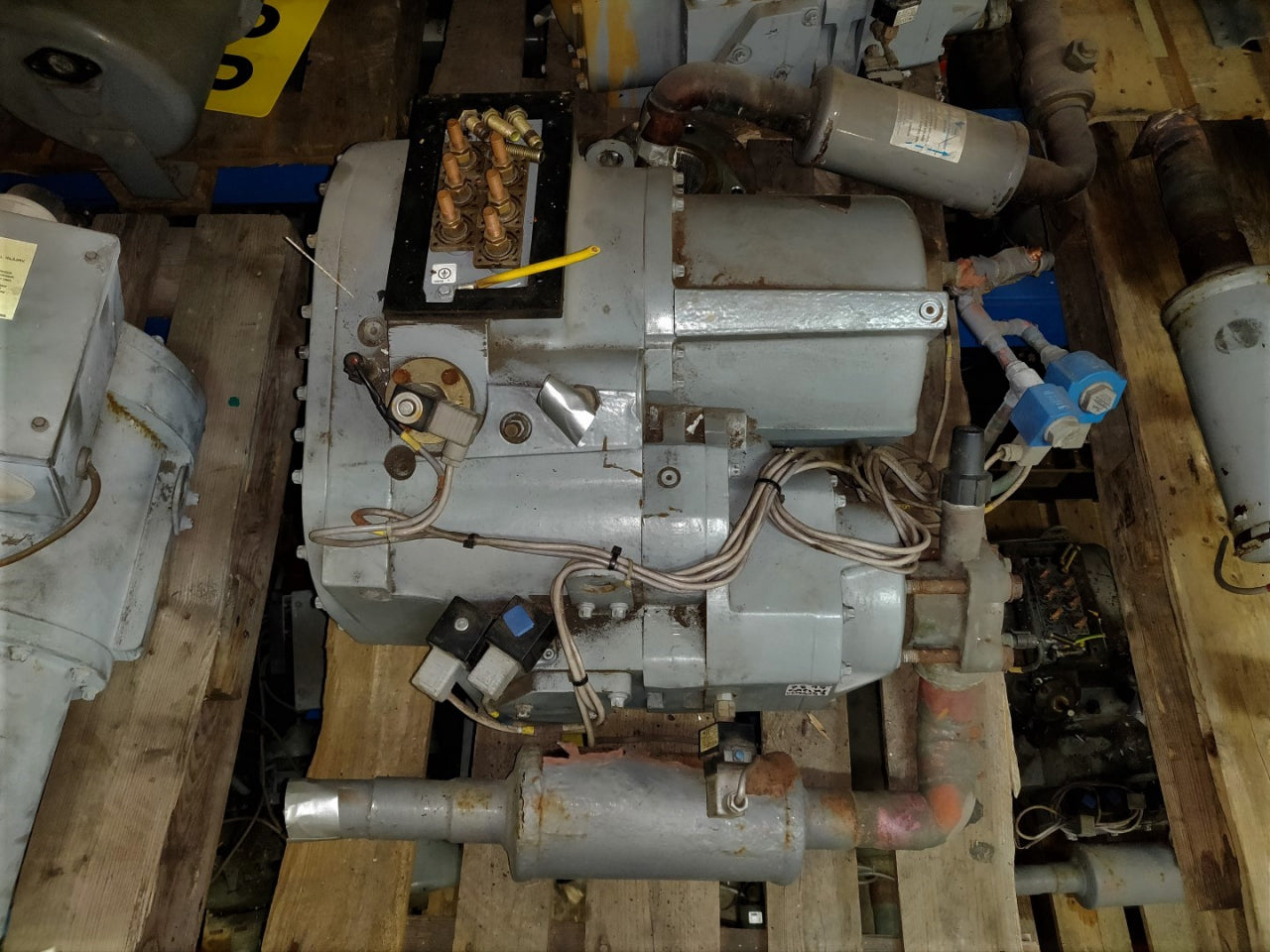

CARRIER 06NA2250S7NA Screw Compressor

Product Description

The CARRIER 06NA2250S7NA is a screw compressor suitable for HVAC and refrigeration applications. This model is designed for air-cooled systems and effectively utilizes a liquid-cooled motor. With a displacement rate of 250 CFM at sixty Hz, it is compatible with R134a and other refrigerants, requiring POE oil type.

• Screw compressor technology
• Designed for air-cooled applications
• Ideal for HVAC and refrigeration systems

Product Highlights

This screw compressor is an efficient solution for various HVAC and refrigeration requirements, providing reliable performance in both commercial and industrial settings.

Product Information

Standard Information

• Manufacturer: CARRIER
• Model: 06NA2250 Series

Technical Specifications

• MPN: 06NA2250S7NA-A00
• Application: HVAC, Air cooled
• Horsepower: 100
• Capacity: 70 TON
• Displacement 60Hz CFM: 250
• Refrigerant Type: R134A or other types
• Oil Type: POE
• Input Voltage: 460V-3P-50/60H
• Cylinders: Twin screw
• Dimensions: 30 inches x 28 inches x 28 inches
• Weight: 946 lbs
• Refrigerant: Freon
• Brand: Carlyle / Carrier
• Type: 06NA225
