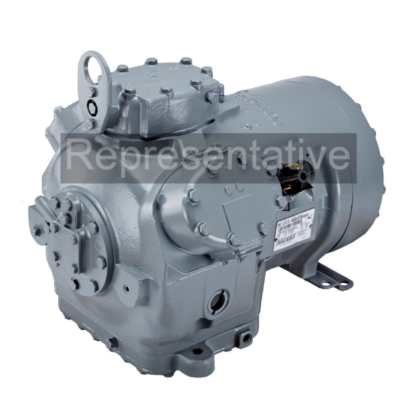

CARRIER 06DM8246AC0100 Semi-Hermetic Compressor

Product Description

The CARRIER 06DM8246AC0100 is a semi-hermetic compressor suitable for medium temperature applications. This model features a high-flow, automatically reversible oil pump that ensures effective oil lubrication. It includes a crankcase venting system that balances pressure during startup, allowing oil to return efficiently to the sump. High-efficiency valves within the compressor enhance refrigerant flow while minimizing pressure drops.

• Designed for medium temperature applications.
• Incorporates a crankcase venting system for pressure equalization.
• Replacement option for various 06DA and DM models.

Product Highlights

Ideal for HVAC systems requiring reliable performance in medium temperature settings.

Product Information

Standard Information

• Brand: CARRIER
• Vendor Name: Carlyle (Genuine)

Technical Specifications

• MPN: 06DM8246AC0100
• Application: High Temp, Medium Temp
• Connection Discharge (In.): 1 1/8
• Connection Suction (In.): 1 3/8
• Displacement (CFM at 1750 RPM): 24
• Horsepower: 7 1/2
• Number of Cylinders: 6
• Oil Charge (Pint): 8.0
• Rated Load Amps: 14.2
• Refrigerant: R12, R22, R134a, R404A, R502, R507
• Voltage: 575/3/60
• Weight: 307 lbs
• Dimensions: 20 x 23 x 25.75 in
