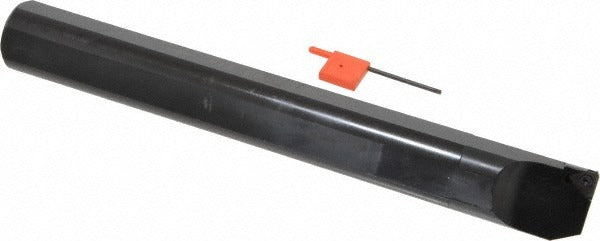

Carmex SIR1500T16 Indexable Threading Toolholder

Product Description

The CARMEX SIR1500T16 is an indexable threading toolholder designed for internal threading operations on CNC lathes and turning centers. It accepts 16IR inserts held by a screw-clamp method and is configured for right-hand cutting. The shank measures 1.5 inches wide by 1.5 inches tall, with an overall length of 12 inches. A minimum bore diameter of 1.65 inches defines the smallest bore this holder can reach. The toolholder belongs to CARMEX's SIR series and operates without through-coolant, making it suited for standard dry or flood-coolant setups.

This toolholder is used in internal threading applications on manual and CNC turning equipment in both production and job-shop environments. It is installed by machinists and toolroom technicians when cutting internal threads in bores 1.65 inches and larger. The back-of-bar to cutting edge distance and center-to-cutting-edge distance are both 0.9 inches, which determines tool reach and positioning within the bore. The neck diameter of 1.5 inches and a distance across flats of 1.25 inches allow secure clamping in standard boring bar holders and quick-change tooling systems.

Key Features

• Internal, right-hand threading configuration in the SIR series
• Accepts 16IR inserts with a 3/8-inch inscribed circle, secured by screw clamp
• 1.5 x 1.5 inch shank cross-section, 12 inches overall length
• Minimum bore diameter of 1.65 inches for deep internal thread access
• Back-of-bar to cutting edge and center-to-cutting-edge distance of 0.9 inches
• No through-coolant design; compatible with external flood-coolant application

Compatibility

Designed for use with 16IR threading inserts with a 3/8-inch inscribed circle. Fits standard boring bar holders and quick-change toolpost systems that accept a 1.5 x 1.5 inch shank.

Installation Notes

This toolholder is installed by qualified machinists on CNC or manual lathes. Power down and engage the machine lockout before mounting or changing the toolholder. Ensure the shank is fully seated and clamped to the manufacturer-specified setup before indexing or replacing the 16IR insert. Verify minimum bore clearance of 1.65 inches before inserting the bar into the workpiece.
