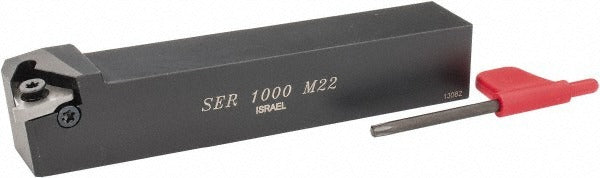

Carmex SER1000M22 Threading Toolholder 1x1 Inch Shank

Product Description

The CARMEX SER1000M22 is an indexable threading toolholder designed for external threading operations on lathes and turning centers. Built in the SER series, it accepts 22ER indexable inserts secured by a screw-clamp holding method for consistent insert positioning during threading passes. The toolholder features a square 1 x 1 inch shank and an overall length of 6 inches, making it suited for standard tool block setups on manual and CNC turning equipment. Installation and operation are handled by machinists and tool-and-die professionals working in production or job-shop environments.

This toolholder is configured for right-hand cutting in external threading applications. The SE-style holder positions the insert at the correct geometry for producing external thread forms on workpieces held in a chuck or collet. At 6 inches overall length with a back-of-bar to cutting edge distance of 1 inch, it fits most standard lathe tool posts and turrets without extended reach adapters. The unit does not include integrated coolant-through capability, so external flood or mist coolant supply should be directed at the cutting zone separately.

Key Features

• External, right-hand threading configuration in the SER series holder style
• Accepts 22ER indexable inserts with screw-clamp holding for repeatable seating
• Square 1 x 1 inch shank fits standard lathe tool posts and turrets
• 6-inch overall length with 1-inch back-of-bar to cutting edge distance
• No coolant-through port - compatible with external coolant delivery setups
• 1/2-inch insert inscribed circle (IC) for the 22ER insert size family

Compatibility

Designed for use with 22ER series indexable threading inserts. Fits standard tool posts and turret stations accepting a 1 x 1 inch square shank toolholder.

Installation Notes

Installation is performed by a qualified machinist. Power down and lock out the lathe or turning center before mounting or changing the toolholder. Secure the shank firmly in the tool post or turret station according to machine manufacturer torque guidelines, and verify insert seating and screw tightness before initiating any cut. Direct external coolant to the cutting zone when machining to manage heat and chip evacuation.
