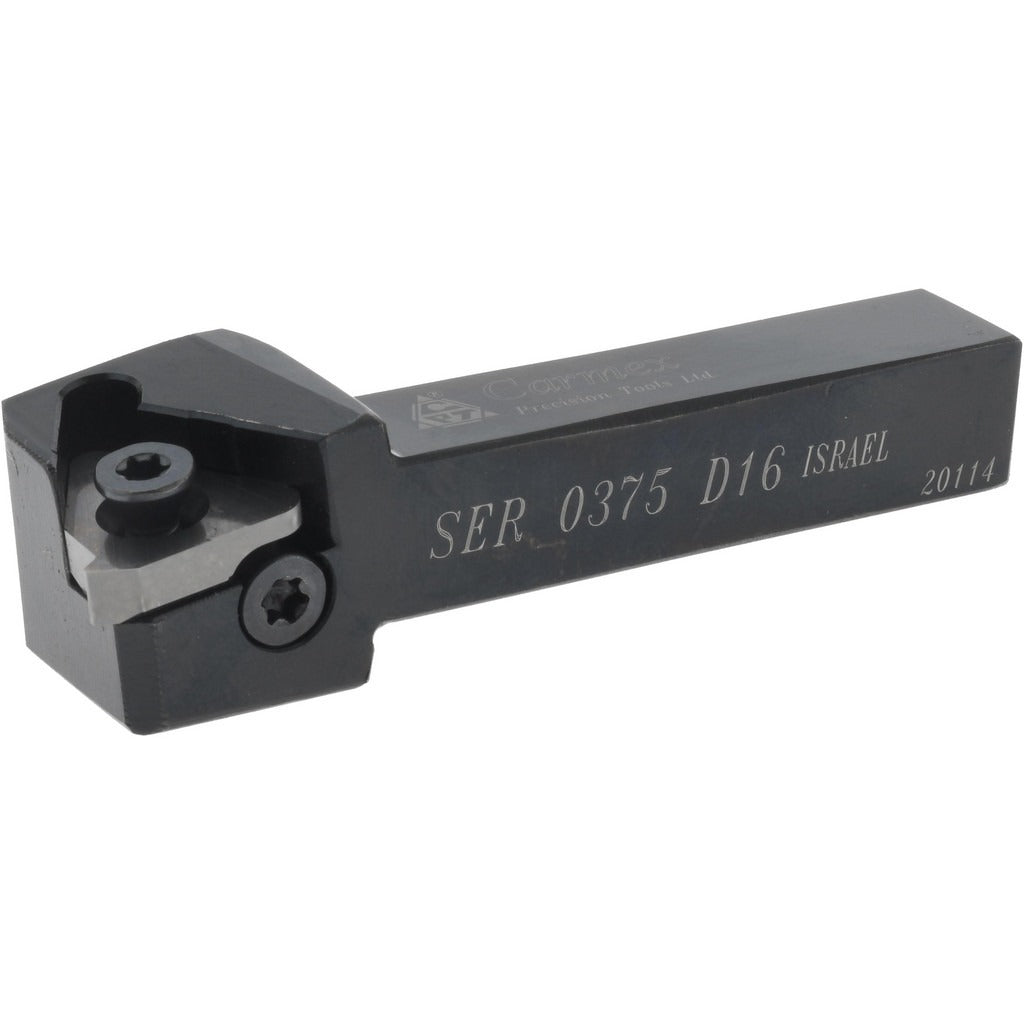

Carmex SER0375D16 Indexable Threading Toolholder

Product Description

The CARMEX SER0375D16 is an external, right-hand indexable threading toolholder designed for precision thread-cutting operations on CNC lathes and manual turning centers. Built in the SER series, it accepts 16ER insert geometry with a 3/8-inch inscribed circle and uses a screw-clamp holding method to keep the insert firmly seated under load. The shank measures 0.375 inches wide by 0.38 inches tall with an overall length of 2.5 inches, making it a compact, rigid option for threading external workpiece features. Machinists and toolroom technicians install this holder when consistency and repeatable insert indexing are required.

This toolholder is suited for external threading applications in production turning environments, job shops, and toolroom settings. The right-hand orientation means it cuts on a standard left-to-right feed pass on most conventional lathe setups. It is not configured for coolant-through delivery, so flood or mist coolant should be directed externally at the cutting zone. The SE-style shank profile fits standard rectangular toolpost slots and quick-change turret pockets sized for 3/8-inch shanks.

Key Features

• External threading application with right-hand cut direction
• Accepts 16ER indexable threading inserts secured by screw clamp
• 3/8-inch (0.375 inch) square shank fits standard rectangular toolpost and turret pockets
• 2.5-inch overall length provides reach while maintaining rigidity
• Back-of-bar to cutting edge dimension of 0.63 inches for consistent tool offset setup
• No coolant-through passages - standard external coolant application

Compatibility

Designed to accept 16ER series indexable threading inserts with a 3/8-inch inscribed circle. Fits standard rectangular toolpost slots and quick-change turret pockets sized for 3/8-inch shanks on CNC and manual turning centers.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before mounting or indexing inserts. Secure the shank fully within the toolpost or turret pocket to the recommended engagement depth before tightening clamping screws. Use the manufacturer-supplied insert screw torque specifications and a calibrated torque driver when seating the 16ER insert to avoid screw damage or insert movement during cutting.
