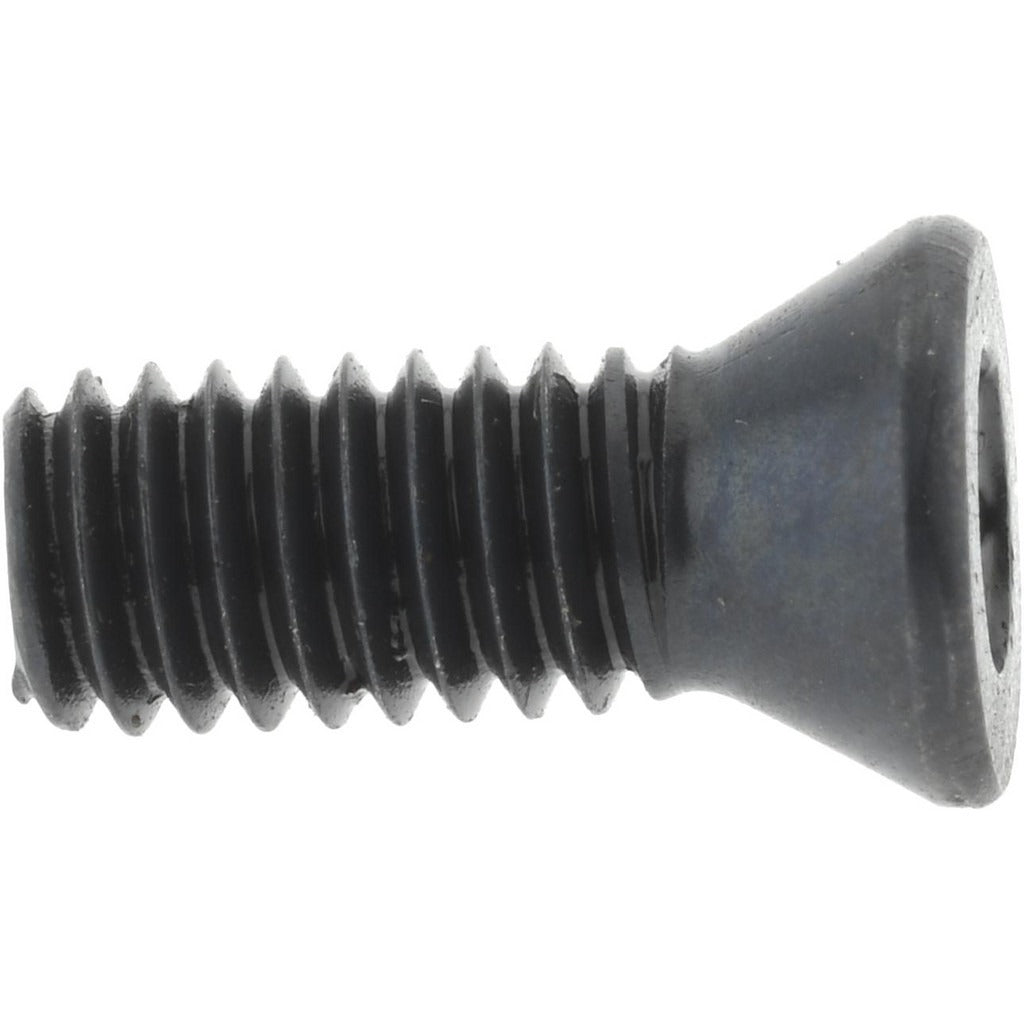

Carmex S21 Insert Screw Indexable Thread Mill

Product Description

The CARMEX S21 is an insert screw designed to secure indexable inserts in threading and thread milling tooling systems. This fastener applies clamping force to hold carbide or cermet inserts firmly in place during machining operations, maintaining consistent insert positioning and preventing movement under cutting loads. The S21 is a hardware component installed by machinists and tooling technicians during insert changeovers or toolholder setup. Correct clamping hardware is critical to achieving repeatable tool geometry and safe cutting performance in CNC and manual threading applications.

The S21 insert screw is used in indexable thread mill toolholders where clamp-style insert retention is specified. It is appropriate for shop environments performing external or internal threading operations on CNC machining centers and lathes. This screw is a consumable replacement part that should be on hand whenever indexable threading tooling is in service, as worn or damaged clamping screws can compromise insert security and surface finish quality.

Key Features

• Designed specifically for indexable thread mill tooling systems
• Clamp-type insert retention hardware for secure insert lockdown
• Replacement fastener for maintaining toolholder clamping integrity
• Compatible with clamp-style indexable toolholder configurations

Compatibility

Designed for use with clamp-style indexable thread mill toolholders requiring insert screw hardware, as specified by the manufacturer. Verify the screw size and thread specification against your toolholder documentation before ordering.

Installation Notes

Insert screws should be installed and torqued using the correct Torx or hex key as specified by the toolholder manufacturer - do not substitute driver sizes, as this can damage the screw head or strip the seating pocket. Always index or replace inserts with the machine fully powered down and spindle locked. Inspect the clamping screw threads and seating surface for wear or damage at each insert change. Discard and replace any screw showing signs of thread deformation or head wear to maintain safe clamping force.
