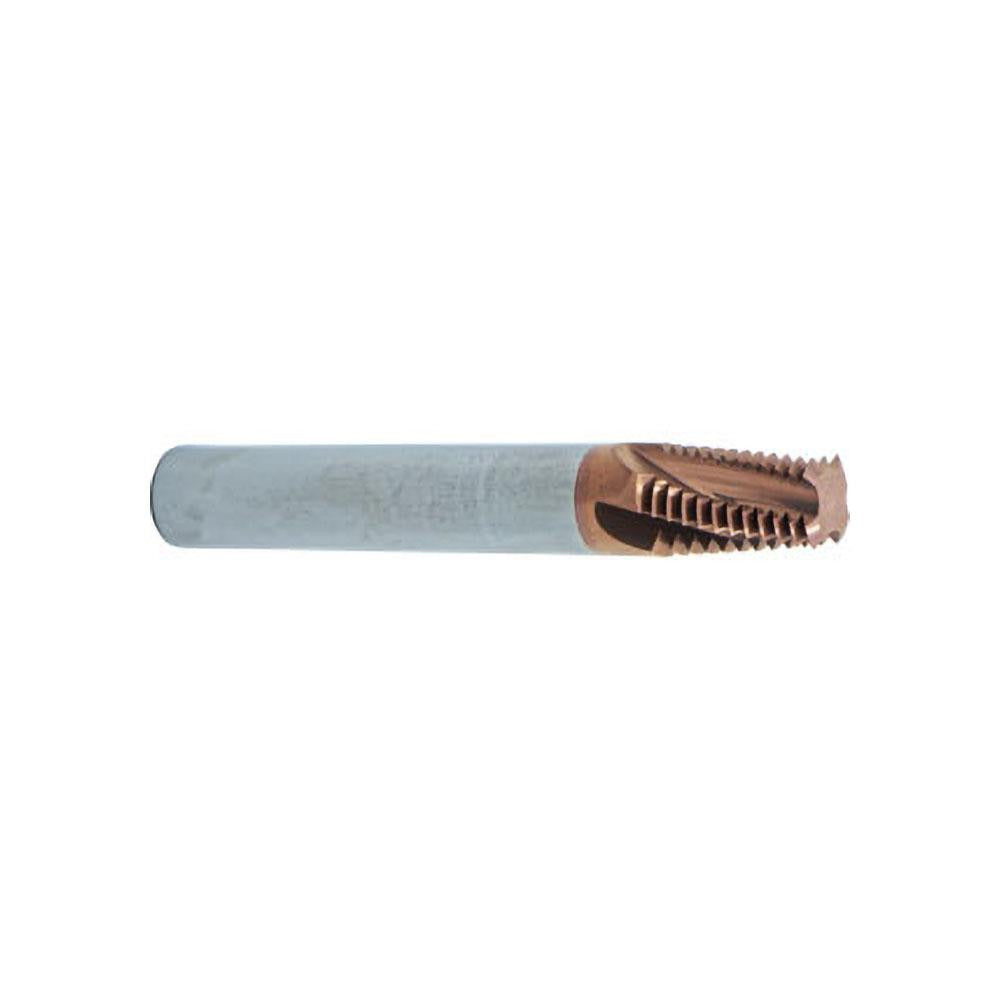

Carmex MT0500D0814NPTF Nptf Thread Mill 4 Flute Solid Carbide

Product Description

The CARMEX MT0500D0814NPTF is a solid carbide helical flute thread mill designed for cutting NPTF pipe threads in the 1/2-14 to 3/4-14 range. It handles both internal and external thread forms in a single tool, running 14 teeth per inch with a 0.5-inch cutting diameter and a 0.82-inch length of cut. The TiAlN coating provides heat resistance and extended tool life in demanding materials. At 3.5 inches overall length with a 0.5-inch shank diameter, this tool is sized for standard milling chucks and collet holders used in CNC machining centers.

This thread mill is suited for machinists and toolroom operators producing NPTF pipe thread forms in ferrous and non-ferrous materials. NPTF threads require tight flank contact for pressure-tight joints without sealant, making accurate thread milling critical in fluid power, hydraulic, and pneumatic component manufacturing. The right-hand flute direction and 4-flute geometry support stable cutting conditions across a range of workpiece materials in both job shop and production environments.

Key Features

• Cuts NPTF threads from 1/2-14 to 3/4-14 in a single tool - internal and external
• Solid carbide construction in MT7 grade for rigidity and dimensional stability
• TiAlN coating extends tool life in high-temperature cutting applications
• 4-flute, right-hand helical geometry for smooth chip evacuation and stable cuts
• 0.5-inch cutting diameter with 0.82-inch length of cut accommodates standard pipe thread depths
• No coolant-through design - compatible with external coolant or dry cutting setups

Compatibility

Designed for use in CNC machining centers with standard 1/2-inch collet or milling chuck toolholders capable of helical interpolation for NPTF pipe thread milling applications.

Installation Notes

Thread milling requires a CNC control capable of helical interpolation - confirm machine compatibility before setup. Secure the tool in a balanced, runout-minimized collet holder; excessive runout will degrade thread form accuracy and shorten tool life. Follow the tool manufacturer's recommended speeds and feeds for the workpiece material and apply external coolant directed at the cutting zone where possible. Inspect the thread form with a calibrated NPTF pipe thread gauge after the first part to verify fit before continuing production.
