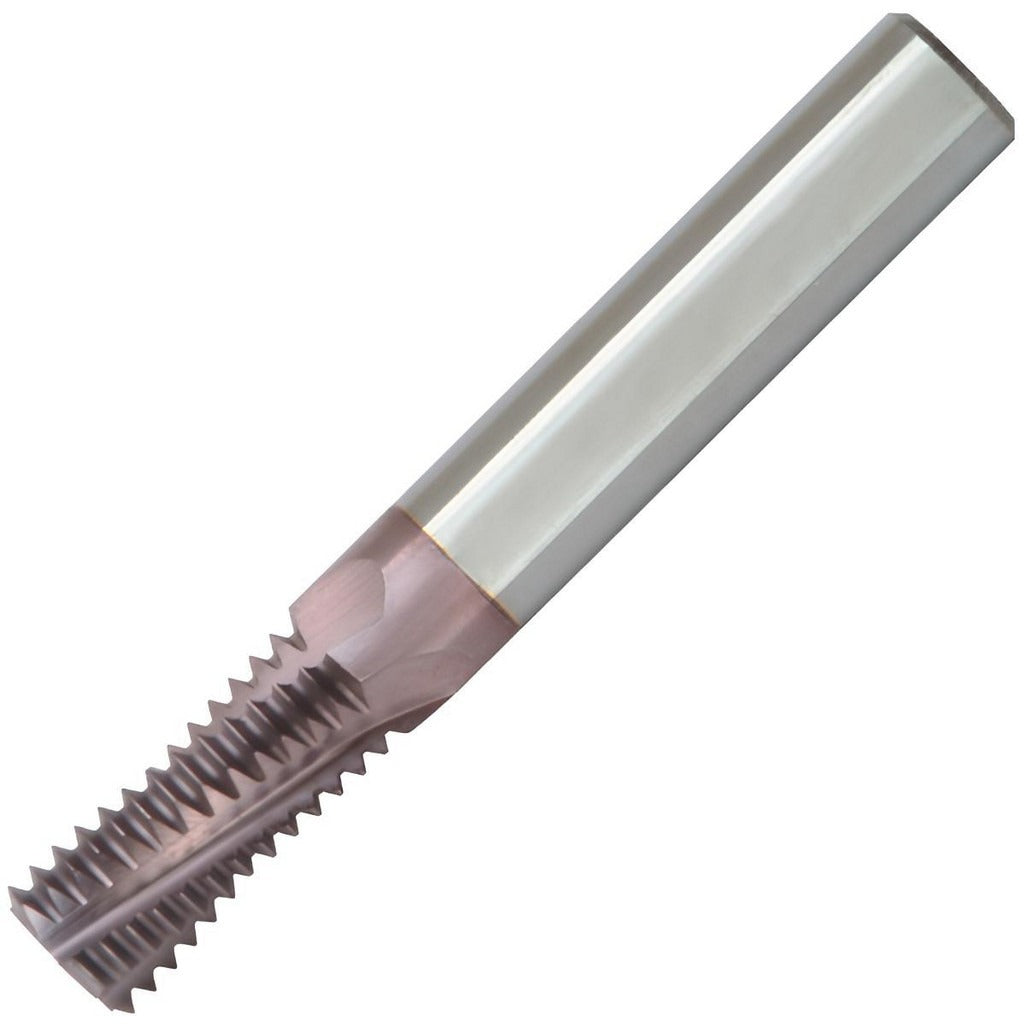

Carmex MT0375D1018UN Helical Flute Thread Mill 4 Flute

Product Description

The CARMEX MT0375D1018UN is a solid carbide helical flute thread mill designed for internal thread milling operations on UNEF and UNF thread standards. Built to material grade MT7 and coated with TiAlN for heat and wear resistance, this tool runs 4 right-hand flutes at 18 teeth per inch. It carries a 0.375-inch cutting diameter, a 1.03-inch length of cut, and a 3.0-inch overall length. The 3/8-inch shank diameter fits standard collet and end mill holders used in CNC machining centers. This tool is installed and operated by machinists and CNC programmers working in precision threading applications.

This thread mill is suited for internal threading in a range of diameters from a 0.5625-inch minimum nominal diameter upward, covering thread sizes including 9/16-18, 5/8-18, 1-1/8-18, and 1-5/8-18 in both UNEF and UNF standards. It is appropriate for use on machining centers in job shop and production environments where helical interpolation is used to generate the thread form in a single tool path. Solid carbide construction supports use in harder workpiece materials where high-speed steel tooling is insufficient.

Key Features

• Solid carbide MT7 grade body for rigidity and wear life in demanding materials
• TiAlN coating improves heat resistance and extends tool life at elevated cutting speeds
• 4 right-hand helical flutes for efficient chip evacuation during internal thread milling
• 18 TPI suits UNEF and UNF thread standards across multiple nominal diameters
• 1.03-inch length of cut accommodates threading depth requirements in typical through and blind-hole applications
• 3/8-inch shank diameter is compatible with standard collet chucks and end mill holders

Compatibility

Designed for internal thread milling of UNEF and UNF threads including sizes 9/16-18, 5/8-18, 1-1/8-18, and 1-5/8-18, with a minimum nominal diameter of 0.5625 inches, using helical interpolation on CNC machining centers.

Installation Notes

This tool is installed by machinists in a CNC machining center using a collet chuck or end mill holder sized for a 3/8-inch shank. Confirm runout and tool projection before cutting, as excess runout will degrade thread quality. Program helical interpolation per the tool manufacturer cutting data for the workpiece material and coating type. Coolant-through is not supported on this tool; external coolant or air blast should be directed at the cutting zone during operation.
