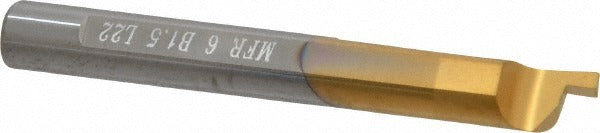

Carmex MFR6B1.5L22 Face Grooving Tool Solid Carbide

Product Description

The CARMEX MFR6B1.5L22 is a solid carbide face grooving tool designed for internal grooving operations on bored or pre-drilled workpieces. It features a 6 mm shank diameter and cuts a groove width of 0.060 inches, making it suited for precise, narrow face grooves in confined bore environments. With an overall length of 2.0 inches and a projection of 0.100 inches, this tool is engineered for rigidity and reach control in tight-clearance applications. Machinists and toolroom professionals use this style of grooving tool on CNC lathes and manual turning centers where consistent groove geometry is required.

This face grooving tool is intended for use in applications requiring a minimum hole diameter of 0.310 inches and a maximum hole depth of 0.875 inches (7/8 inch). It is appropriate for precision turning operations in production and job-shop environments where solid carbide tooling is specified for hardness, wear resistance, and dimensional consistency. Typical applications include groove cutting for retaining rings, O-ring seats, and undercuts on internal bore faces.

Key Features

• Solid carbide construction for superior wear resistance and rigidity
• 0.060 inch groove width for precise, narrow face grooving
• 6 mm shank diameter for compatibility with standard toolholding systems
• 0.100 inch projection provides controlled reach into bore profiles
• 2.0 inch overall length suits compact toolpost and turret setups
• Minimum bore entry of 0.310 inches enables work in small-diameter holes

Compatibility

Designed as an OEM-style face grooving tool for use in CNC lathe and turning center applications requiring a 6 mm round shank and a minimum hole diameter of 0.310 inches.

Installation Notes

Installation and setup should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool turret is de-energized before inserting or changing tooling. Verify shank clamping torque meets the toolholder manufacturer specifications and confirm tool projection and centerline height before cutting. Follow applicable shop safety standards and machine manufacturer guidelines during setup.
