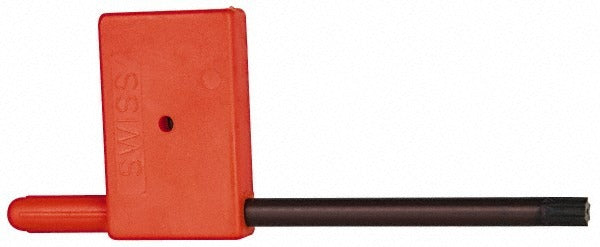

Carmex K12 Torx Drive Key Indexable Thread Mill

Product Description

The CARMEX K12 is a Torx drive key designed for tightening and loosening insert screws on indexable thread mill tooling. It provides the correct drive engagement needed to properly seat and secure cutting inserts without damaging the screw head or the insert pocket. This type of key is a standard service tool kept at the machine or in the toolbox by machinists and toolroom technicians running indexable threading operations on CNC mills and machining centers. The K12 is compatible with S12 insert screws and works across a specific range of indexable thread mill inserts.

This key is used in metalworking and precision machining environments where indexable thread mills are run on CNC milling machines. It is the correct tool for assembling and disassembling inserts on compatible 12-series thread mill bodies. Typical users include CNC machinists, toolroom technicians, and setup personnel working with UN thread form inserts in production or job shop settings. It is sold individually but subject to a minimum order quantity of 10 units, making it practical to stock as a consumable service tool.

Key Features

• Torx drive interface provides positive engagement with S12 insert screws, reducing cam-out risk during insert changes
• Sized specifically for 12-series indexable thread mill tooling
• Compatible with a range of UN thread form inserts including 16, 20, 24, and 32 thread-per-inch configurations
• Compact form factor suited for use at the machine or in a tooling kit
• Sold per unit with a minimum order quantity of 10

Compatibility

Compatible with S12 insert screws. Confirmed insert compatibility includes the following CARMEX indexable thread mill inserts: 12 I 16 UN, 12 I 20 UN, 12 I 24 UN, and 12 I 32 UN.

Installation Notes

Insert changes on indexable thread mills should be performed with the machine powered down and the spindle locked or at rest. Use the K12 key to loosen or tighten the S12 insert screw to the tool manufacturer recommended seating feel - do not overtighten, as doing so can crack the insert or strip the screw. Keep the insert pocket clean and free of chips before seating a new insert. This is a toolroom or machine-side task typically performed by the CNC operator or setup technician.
